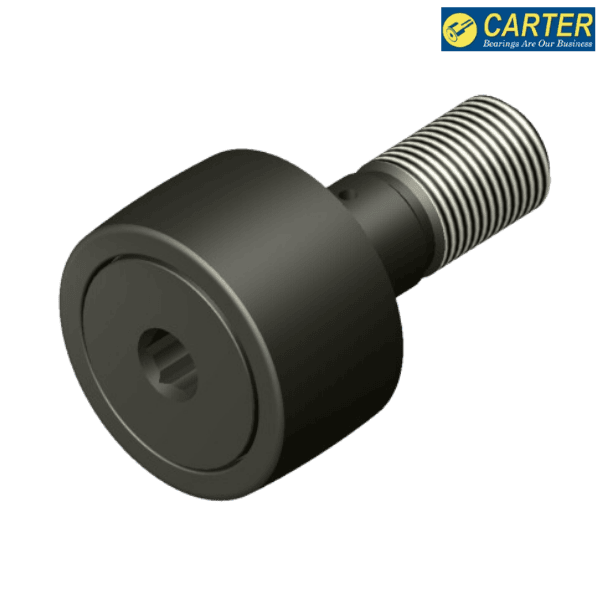

CCNB-28-B CARTER


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - CARTER
Item Number - CCNB-28-B CARTER
Category - Standard Crowned Hexed Unsealed Cam Follower

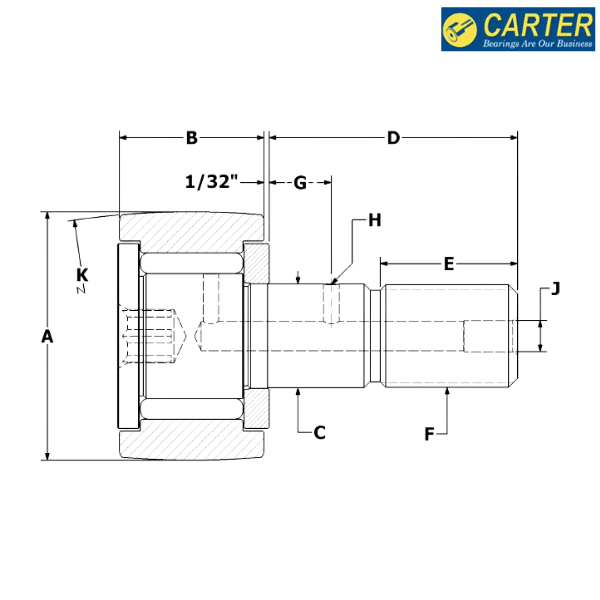

Imperial :
Roller Outer Diameter (A) inch - 0.875
Roller Width (B) inch - 0.5
Crown Radius (K) inch - 10
Stud Diameter (C) inch - 0.375
Stud Length (D) inch - 0.875
M.E.T. (E) inch - 0.375
Thread Class 2A (F) - 0.375-24
Thread Diameter (inch) - 0.375
Number of Threads per inch - 24
Oil Hole Center (G) inch - 0.25
Oil Hole Diameter (H) inch - 0.09375
Lube Fitting Size (J) inch - 0.1875
Hex Size (X) inch - 0.1875
Minimum Boss Diameter (inch) - 0.5
Mounting Bore (inch) - 0.375
Torque (in-lb) * - 47.5
Maximum Static Capacity (lbf) - 2065
Basic Dynamic Rating (lbf) - 1660
Limiting Speed (rpm) - 5400

Metric :
Roller Outer Diameter (A) mm - 22.225
Roller Width (B) mm - 12.7
Crown Radius (K) mm - 254
Stud Diameter (C) mm - 9.525
Stud Length (D) mm - 22.225
M.E.T. (E) mm - 9.525
Oil Hole Center (G) mm - 6.35
Oil Hole Diameter (H) mm - 2.38125
Lube Fitting Size (J) mm - 4.7625
Hex Size (X) mm - 4.7625
Minimum Boss Diameter (mm) - 12.7
Mounting Bore (mm) - 9.525
Maximum Static Capacity (N) - 9185.5743
Basic Dynamic Rating (N) - 42164

Notes :
*Clamping torque is based on lubricated threads, if threads are dry, double the value listed

**Images are for representation purposes only
