CRBC 8 RBC

Brand - RBC
Item Number - CRBC 8 RBC
Also Known As - CRBC8
Long-Life Cam Followers (without Crowned Outer Ring) - RBC 8
Category - Long-Life Cam Followers

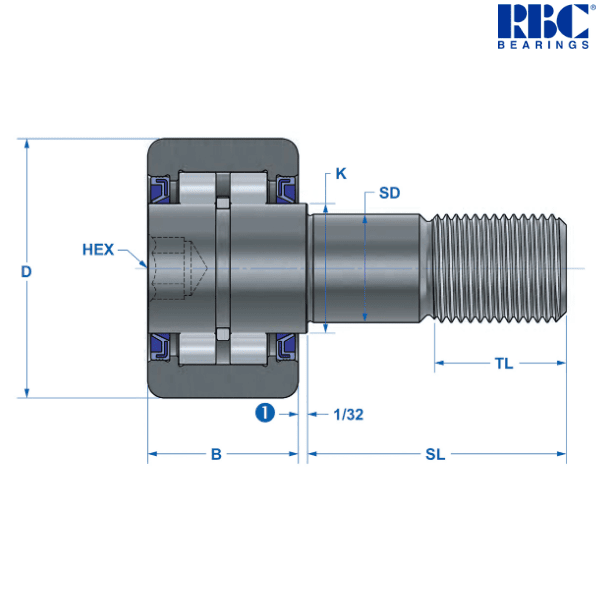

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter (D) - 8.000 (+ .000 to - .001) inch
Roller Width (B) - 4.250 (+ .000 to - .005) inch
Crown Radius (CR) - 40 inch
Shank Diameter (SD) - 3.2500 (+ .001 to - .000) inch
Shank Length (SL) - 8.5 inch
Shoulder Diameter (K) - 4 inch
Eff. Thread Length (TL) - 4.25 inch
Thread Class 2A - 3 1/4-4
Approximate Weight - 73.6 lbs
Socket Head Wrench Size - 1.25 inch
Speed Limit - 1100 rpm
Dynamic Capacity (C) - 175000 lbf
Static Capacity (C0) - 272000 lbf *
Maximum Allowable Load - 98000 lbf
Track Capacity @ 40 Rc - 70000 lbf
Maximum Clamping Torque - 3000 in-lbf **
Housing Bore - 3.2500 (+ .0005 to - .0002) inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 33.379 kg

Description of Prefixes :
C - Crowned Outer Ring
RBC - Standard Stud (Hex Head)

Description of Possible Suffixes :
OH - Oil Holes
LU - Special Grease
NS - Without Seals
CR - Corrosion Resistant
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• To specify RBC Roller® with lubrication holes, add OH suffix.
• Seals can be removed for flow-through lubrication.
• To specify RBC Roller® without seals, add NS suffix.
• Excessive clamping torque may cause shoulder K to dig into housing.
• (1) 1/16 inch for sizes RBC 5 and larger. (refer to the image)

* Bearing Static Capacity provided for comparison only.
** Torque may be doubled for completely dry threads.

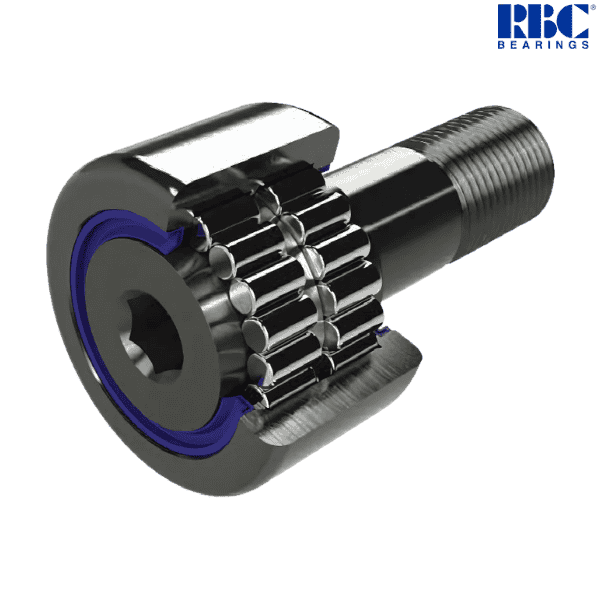

♦ ♦ Images are for representation purposes only
