CRBY 1 7/8 RBC

Brand - RBC
Item Number - CRBY 1 7/8 RBC
Also Known As - CRBY 1-7/8
Long-Life Yoke Rollers (without Crowned Outer Ring) - RBY 1 7/8
Category - Long-Life Yoke Rollers

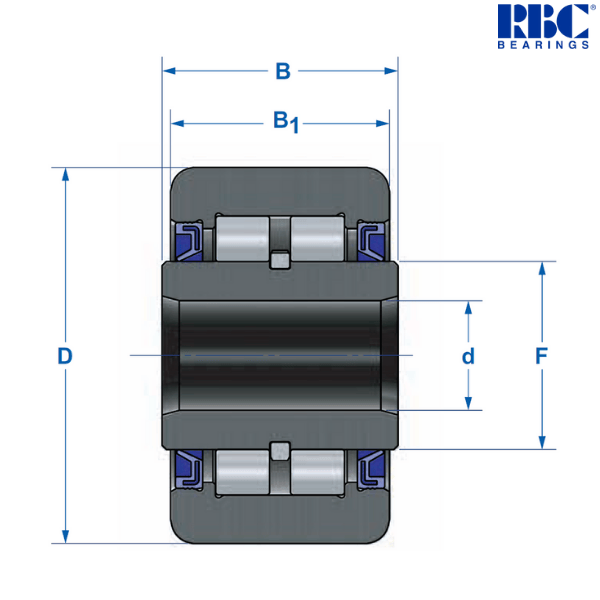

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter (D) - 1.875 (+ .000 to - .001) inch
Roller Width (B1) - 1 (+ .000 to - .005) inch
Crown Radius (CR) - 20 inch
Nominal Inside Diameter (d) - 0.5 inch
Minimum Inside Diameter (d) - 0.4996 inch
Maximum Inside Diameter (d) - 0.5002 inch
Overall Width (B) - 1.0625 (+ .005 to - .010) inch
Shaft Shoulder (F) - 1 inch
Approximate Weight - 0.67 lbs
Speed Limit - 4700 rpm
Dynamic Capacity (C) - 8200 lbf
Static Capacity (C0) - 10500 lbf *
Maximum Allowable Load - 3800 lbf
Track Capacity @ 40 Rc - 4900 lbf
Maximum Transition Fit - 0.4997 inch
Minimum Transition Fit - 0.4993 inch
Maximum Press Fit - 0.5007 inch
Minimum Press Fit - 0.5003 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.304 kg

Description of Prefixes :
C - Crowned Outer RIng
RBY - Yoke Roller

Description of Possible Suffixes :
OH - Oil Holes
LU - Special Grease
NS - Without Seals
CR - Corrosion Resistant
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• To specify RBC Roller® with lubrication holes, add OH suffix.
• Seals can be removed for flow-through lubrication.
• To specify RBC Roller® without seals, add NS suffix.

* Bearing Static Capacity provided for comparison only.

♦ ♦ Images are for representation purposes only
