CS 52 LWX RBC

Brand - RBC
Item Number - CS 52 LWX RBC
Also Known As - CS52LWX Basic Number - (-52)
CamCentric™ Adjustable Cam Followers (Cylindrical Outer Ring) - S 52 LWX
Category - CamCentric™ Adjustable Cam Followers (Crowned Outer Ring)

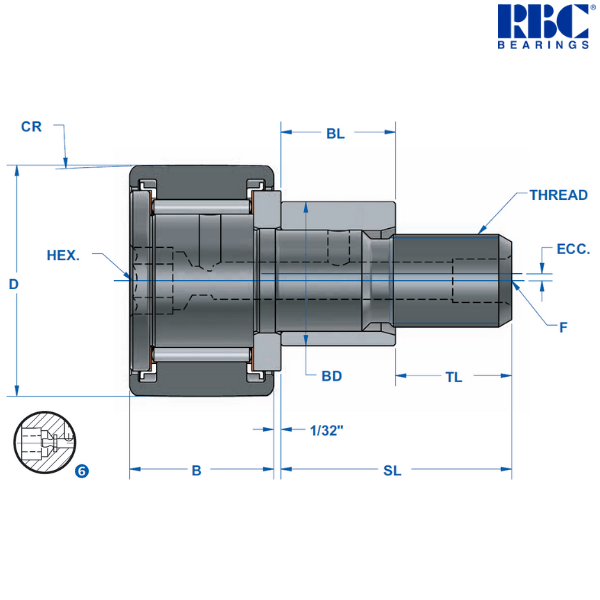

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 1.625 inch
Outside Diameter (D) - 1.625 (+ .000 to - .001) inch
Roller Width (B) - 0.875 (+.000 to - .005) inch
Crown Radius (CR) - 20 inch
BD - 0.875 (+ .000 to - .002) inch
BL - 0.75 (+ .000 to - .010) inch *
Eccentricty (ECC) - 0.03 inch
Shank Length (SL) - 1.5 inch
Eff. Thread Length (TL) - 0.75 inch
Thread Class 2A - 5/8-18
Approximate Weight - 0.67 lbs
Lube Fitting (F) - 0.1875 inch
Socket Head Wrench Size - 0.3125 inch
Speed Limit - 3100 rpm
Dynamic Capacity (C) - 5000 lbf
Static Capacity (C0) - 8800 lbf ***
Maximum Allowable Load - 5100 lbf
Track Capacity @ 40 Rc - 3600 lbf
Maximum Clamping Torque - 390 in-lbf ****
Hsg. Bore - 0.875 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.304 kg

Replaces (Direct Interchange) :
McGill - CCFE-1 5/8-SB
KOYO - CRSBCE-26

Description of Suffixes and Prefixes :
C - Crowned Outer Ring
S - Standard Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature
X - Eccentric Bushing

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• Do not clamp eccentric bushing.
• Eccentric bushing press fitted and not heat treated to permit dowel or set screw engagement.

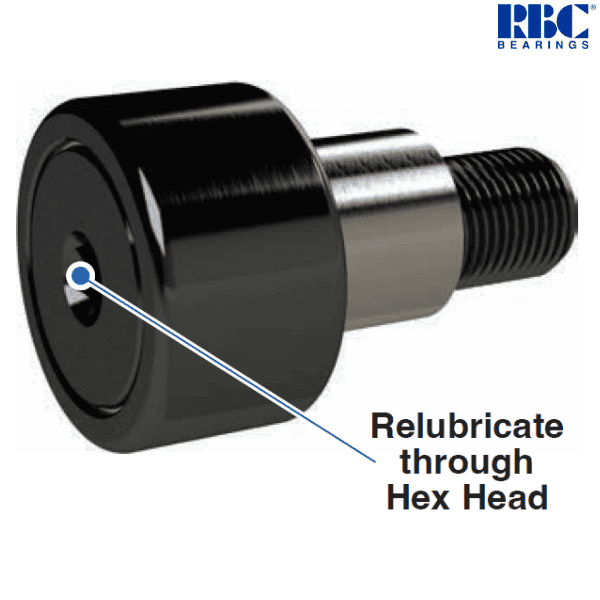

• (6) HexLube ® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* For positive clamping action use a housing thickness tolerance of +0.010/-0.000 inches.
*** Bearing Static Capacity provided for comparison only.
**** Bearing Static Capacity provided for comparison only.

♦ ♦ Images are for representation purposes only
