CS 80 LWX RBC

Brand - RBC
Item Number - CS 80 LWX RBC
Also Known As - CS80LWX Basic Number - (-80)
CamCentric™ Adjustable Cam Followers (Cylindrical Outer Ring) - S 80 LWX
Category - CamCentric™ Adjustable Cam Followers (Crowned Outer Ring)

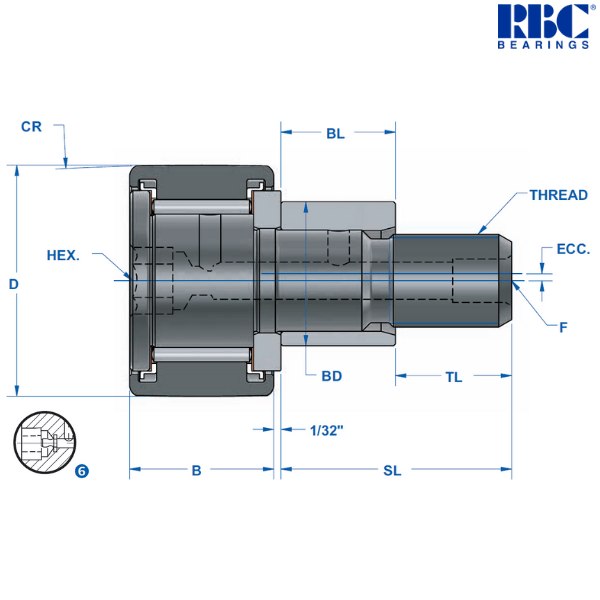

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 2.5 inch
Outside Diameter (D) - 2.5 (+ .000 to - .001) inch
Roller Width (B) - 1.5 (+.000 to - .005) inch
Crown Radius (CR) - 30 inch
BD - 1.375 (+ .000 to - .002) inch
BL - 1.125 (+ .000 to - .010) inch *
Eccentricty (ECC) - 0.03 inch
Shank Length (SL) - 2.25 inch
Eff. Thread Length (TL) - 1.125 inch
Thread Class 2A - 1-14
Approximate Weight - 2.7 lbs
Lube Fitting (F) - 0.1875 inch
Socket Head Wrench Size - 0.5 inch
Speed Limit - 2000 rpm
Dynamic Capacity (C) - 12800 lbf
Static Capacity (C0) - 25400 lbf ***
Maximum Allowable Load - 12500 lbf
Track Capacity @ 40 Rc - 9400 lbf
Maximum Clamping Torque - 1300 in-lbf ****
Hsg. Bore - 1.375 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.224 kg

Replaces (Direct Interchange) :
McGill - CCFE-2 1/2-SB
KOYO - CRSBCE-40

Description of Suffixes and Prefixes :
C - Crowned Outer Ring
S - Standard Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature
X - Eccentric Bushing

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• Do not clamp eccentric bushing.
• Eccentric bushing press fitted and not heat treated to permit dowel or set screw engagement.

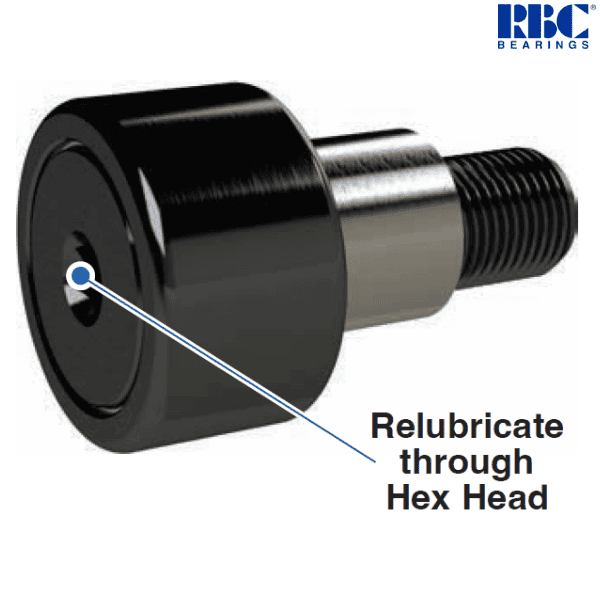

• (6) HexLube ® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* For positive clamping action use a housing thickness tolerance of +0.010/-0.000 inches.
*** Bearing Static Capacity provided for comparison only.
**** Bearing Static Capacity provided for comparison only.

♦ ♦ Images are for representation purposes only
