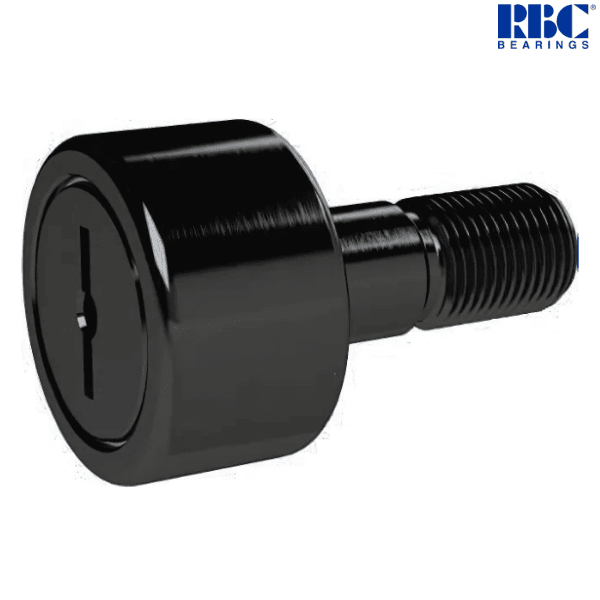

CS 88 L RBC

Brand - RBC
Item Number - CS 88 L RBC
Also Known As - CS88L
Crowned Cam Followers (Hexlube® Socket Head and Sealed) - CS 88 LW
Basic Number - (-88)
Category - Crowned Cam Followers with Standard Stud (Slotted Head and Sealed)

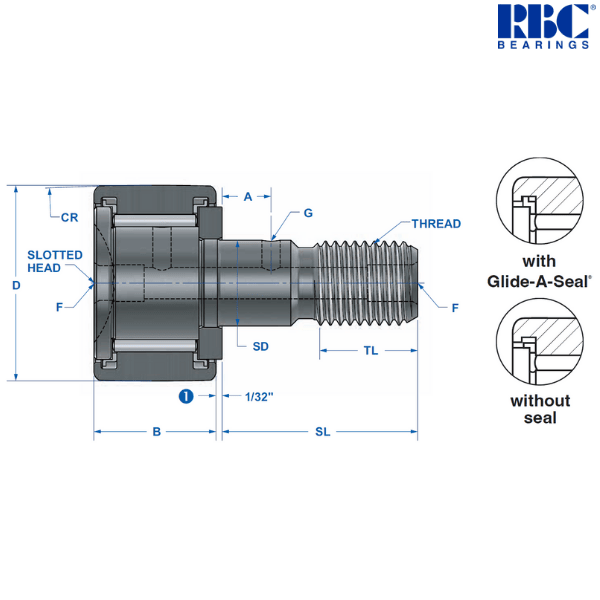

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 2.75 inch
Outside Diameter (D) - 2.75 (+ .000 to - .001) inch
Roller Width (B) - 1.5 (+ .000 to - .005) inch
Crown Radius (CR) - 30 inch
Shank Diameter (SD) - 1 (+ .001 to - .000) inch
Shank Length (SL) - 2.25 inch
Eff. Thread Length (TL) - 1.125 inch
Thread Class 2A - 1-14
Approximate Weight - 2.83 lbs
Lube Fitting (F) - 3/16 inch *
Loc. (A) - 0.562 inch
Diameter (G) - 0.125 inch
Socket Head Wrench Size - 0.5 inch
Speed Limit - 2000 rpm
Dynamic Capacity (C) - 12800 lbf
Static Capacity (C0) - 25400 lbf ***
Maximum Allowable Load - 12500 lbf
Track Capacity @ 40 Rc - 10400 lbf
Maximum Clamping Torque - 1300 in-lbf ****
Hsg. Bore - 1 (+ .0005 to - .0000) inch
Minimum Boss Diameter - 1.31 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.283 kg

Description of Suffixes and Prefixes :
C - Crowned Outer Ring
S - Standard Stud (Screwdriver Slot Head)
L - Sealed

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• (1) 1/16" for sizes CS 160 LW and larger. (Refer to the Image)
• (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* Sizes CS 16 LW through CS 22 LW cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.
**** Torque may be doubled for completely dry threads.

♦ ♦ Images are for representation purposes only
