CS 96 LW RBC

Brand - RBC
Item Number - CS 96 LW RBC
Also Known As - CS96LW
Crowned Cam Followers (Slotted Head and Sealed) - CS 96 L
Basic Number - (-96)
Category - Crowned Cam Followers with Standard Stud (Hexlube® Socket Head and Sealed)

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 3 inch
Outside Diameter (D) - 3 (+ .000 to - .001) inch
Roller Width (B) - 1.75 (+ .000 to - .005) inch
Crown Radius (CR) - 30 inch
Shank Diameter (SD) - 1.25 (+ .001 to - .000) inch
Shank Length (SL) - 2.5 inch
Eff. Thread Length (TL) - 1.25 inch
Thread Class 2A - 1 1/4-12
Approximate Weight - 4.04 lbs
Lube Fitting (F) - 1/4 inch *
Loc. (A) - 0.625 inch
Diameter (G) - 0.187 inch
Socket Head Wrench Size - 0.625 inch
Speed Limit - 1600 rpm
Dynamic Capacity (C) - 17000 lbf
Static Capacity (C0) - 40000 lbf ***
Maximum Allowable Load - 21000 lbf
Track Capacity @ 40 Rc - 13300 lbf
Maximum Clamping Torque - 2000 in-lbf ****
Hsg. Bore - 1.25 (+ .0005 to - .0000) inch
Minimum Boss Diameter - 2 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.832 kg

Replaces (Direct Interchange) :
McGill - CCF-3-SB
KOYO - CRSBC-48

Replaces :
RBC - CS96L
McGill - CCF-3S
KOYO - CRSC-48

Description of Suffixes and Prefixes :
C - Crowned Outer Ring
S - Standard Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :

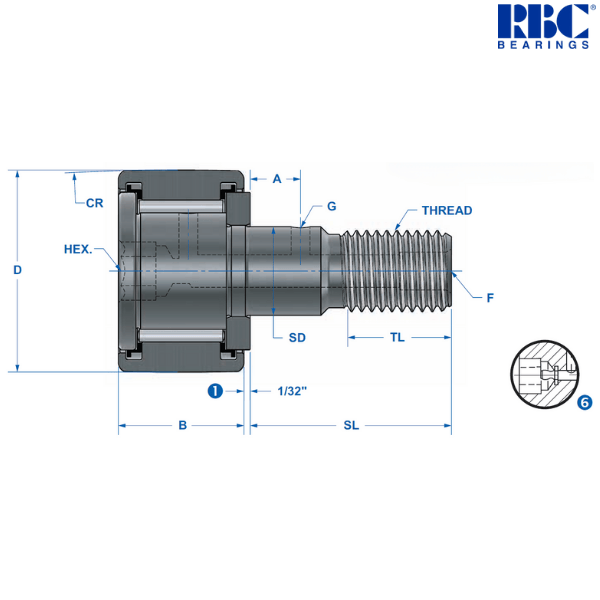

• (1) 1/16" for sizes CS 160 LW and larger. (Refer to the Image)

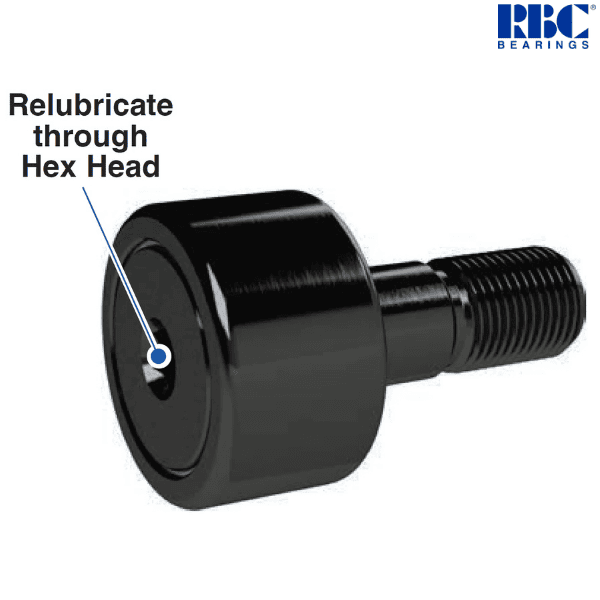

• (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* Sizes CS 16 LW through CS 22 LW cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.
**** Torque may be doubled for completely dry threads.

♦ ♦ Images are for representation purposes only
