Description
Brand - NADELLA

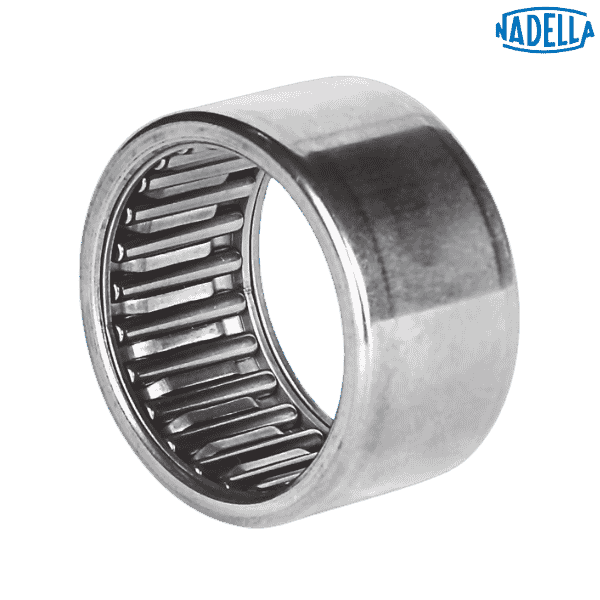

Item Number - DL47 16 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)

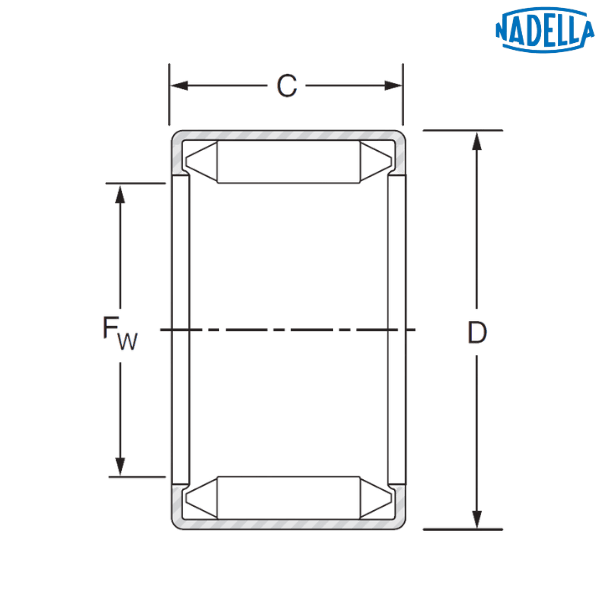

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 47 mm
Diameter of the Inner Raceway (Fw) - 47 mm
Outer Diameter (D) - 55 mm
Width (C) - 16 mm
Dynamic Load Rating (C) - 25 kN
Static Load Rating (C0) - 61 kN
Speed Limit with Grease - 4200 rpm
Speed Limit with Oil - 6400 rpm
Weight - 0.06 kg
Description of Prefix :
DL - Full complement needle bush, open
♦ ♦ Images are for representation purposes only
Item Number - DL47 16 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 47 mm
Diameter of the Inner Raceway (Fw) - 47 mm
Outer Diameter (D) - 55 mm
Width (C) - 16 mm
Dynamic Load Rating (C) - 25 kN
Static Load Rating (C0) - 61 kN
Speed Limit with Grease - 4200 rpm
Speed Limit with Oil - 6400 rpm
Weight - 0.06 kg
Description of Prefix :
DL - Full complement needle bush, open
♦ ♦ Images are for representation purposes only
