Description
Brand - NADELLA
Item Number - DL 55 20 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR50x55x20

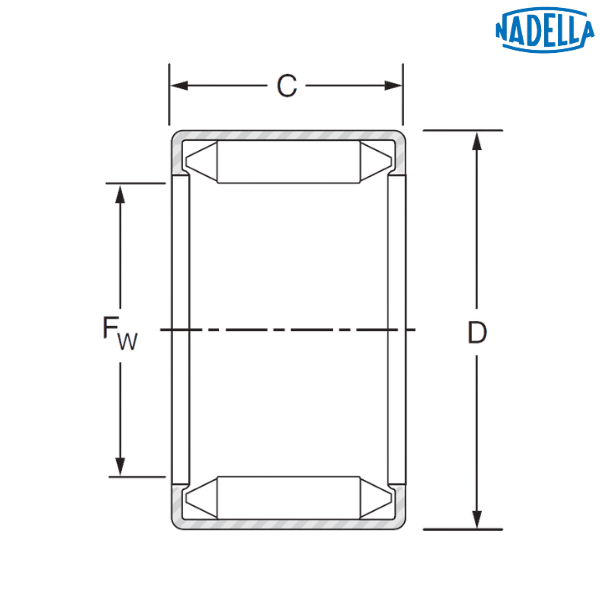

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 55 mm
Diameter of the Inner Raceway (Fw) - 55 mm
Outer Diameter (D) - 63 mm
Width (C) - 20 mm
Dynamic Load Rating (C) - 39.5 kN
Static Load Rating (C0) - 102 kN
Speed Limit with Grease - 3600 rpm
Speed Limit with Oil - 5500 rpm
Weight - 0.086 kg
Description of Prefix :
DL - Full complement needle bush, open
♦ ♦ Images are for representation purposes only
Item Number - DL 55 20 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR50x55x20
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 55 mm
Diameter of the Inner Raceway (Fw) - 55 mm
Outer Diameter (D) - 63 mm
Width (C) - 20 mm
Dynamic Load Rating (C) - 39.5 kN
Static Load Rating (C0) - 102 kN
Speed Limit with Grease - 3600 rpm
Speed Limit with Oil - 5500 rpm
Weight - 0.086 kg
Description of Prefix :
DL - Full complement needle bush, open
♦ ♦ Images are for representation purposes only
