Description
Brand - NADELLA
Item Number - DL 6 10 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)

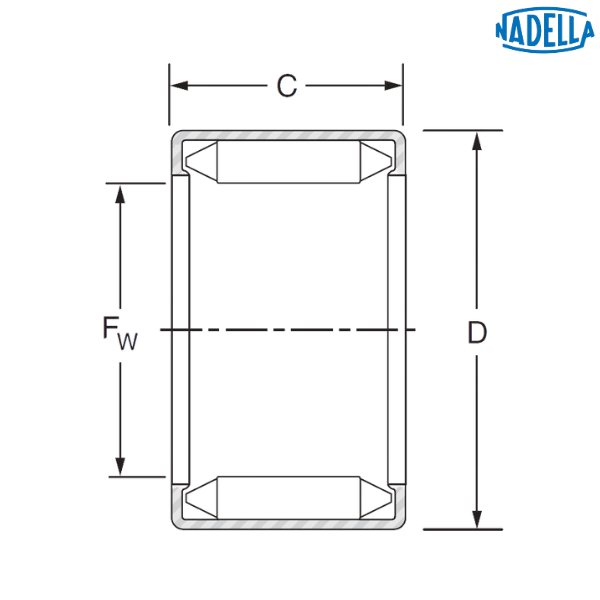

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 6 mm
Diameter of the Inner Raceway (Fw) - 6 mm
Outer Diameter (D) - 12 mm
Width (C) - 10 mm
Dynamic Load Rating (C) - 2.9 kN
Static Load Rating (C0) - 3.8 kN
Speed Limit with Grease - 33000 rpm
Speed Limit with Oil - 50000 rpm
Weight - 0.004 kg
Description of Prefix :
DL - Full complement needle bush, open

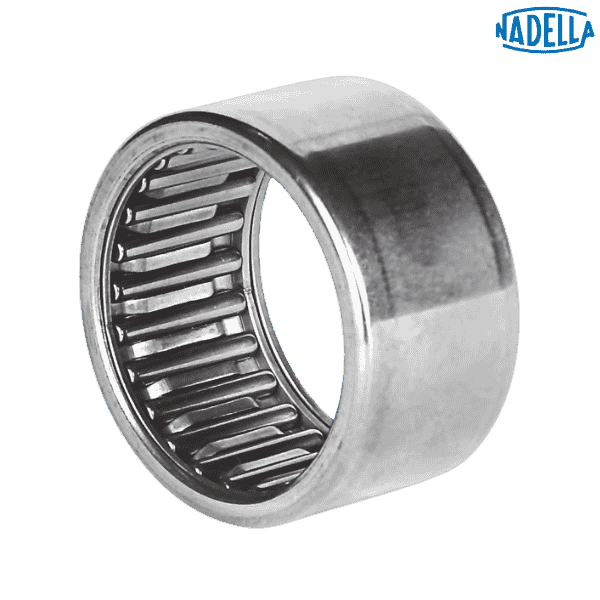

♦ ♦ Images are for representation purposes only
