Description
Brand - NADELLA
Item Number - DLF 13 12 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)
Compatible Internal Ring - JR10x13x12.5

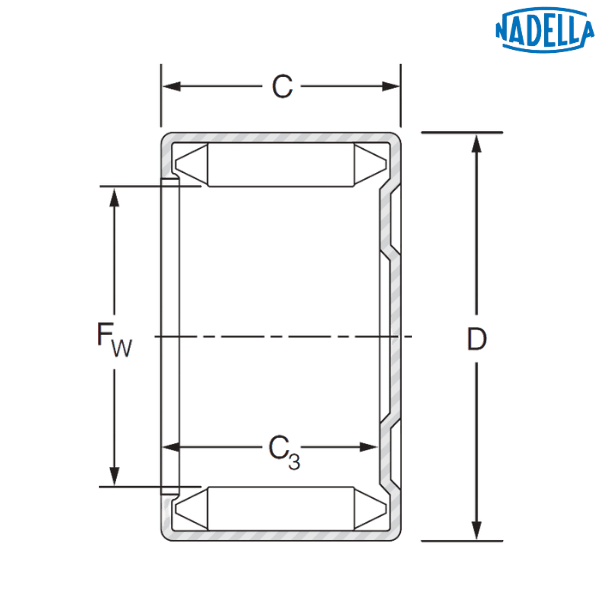

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 13 mm
Diameter of the Inner Raceway (Fw) - 13 mm
Outer Diameter (D) - 19 mm
Width (C) - 12 mm
Minimum Width (C3) - 9.7 mm
Dynamic Load Rating (C) - 8.5 kN
Static Load Rating (C0) - 14.2 kN
Speed Limit with Grease - 15000 rpm
Speed Limit with Oil - 23000 rpm
Weight - 0.011 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
Item Number - DLF 13 12 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)
Compatible Internal Ring - JR10x13x12.5
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 13 mm
Diameter of the Inner Raceway (Fw) - 13 mm
Outer Diameter (D) - 19 mm
Width (C) - 12 mm
Minimum Width (C3) - 9.7 mm
Dynamic Load Rating (C) - 8.5 kN
Static Load Rating (C0) - 14.2 kN
Speed Limit with Grease - 15000 rpm
Speed Limit with Oil - 23000 rpm
Weight - 0.011 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
