Description
Brand - NADELLA
Item Number - DLF 35 20 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)
Compatible Internal Ring - JR30x35x20.5

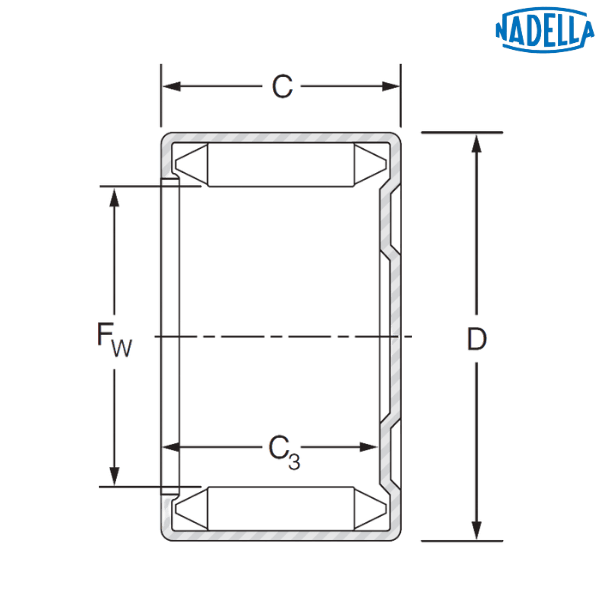

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 35 mm
Diameter of the Inner Raceway (Fw) - 35 mm
Outer Diameter (D) - 43 mm
Width (C) - 20 mm
Minimum Width (C3) - 17.7 mm
Dynamic Load Rating (C) - 29 kN
Static Load Rating (C0) - 65 kN
Speed Limit with Grease - 5500 rpm
Speed Limit with Oil - 8500 rpm
Weight - 0.064 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
Item Number - DLF 35 20 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)
Compatible Internal Ring - JR30x35x20.5
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 35 mm
Diameter of the Inner Raceway (Fw) - 35 mm
Outer Diameter (D) - 43 mm
Width (C) - 20 mm
Minimum Width (C3) - 17.7 mm
Dynamic Load Rating (C) - 29 kN
Static Load Rating (C0) - 65 kN
Speed Limit with Grease - 5500 rpm
Speed Limit with Oil - 8500 rpm
Weight - 0.064 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
