Description
Brand - NADELLA
Item Number - DLF 50 18 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)

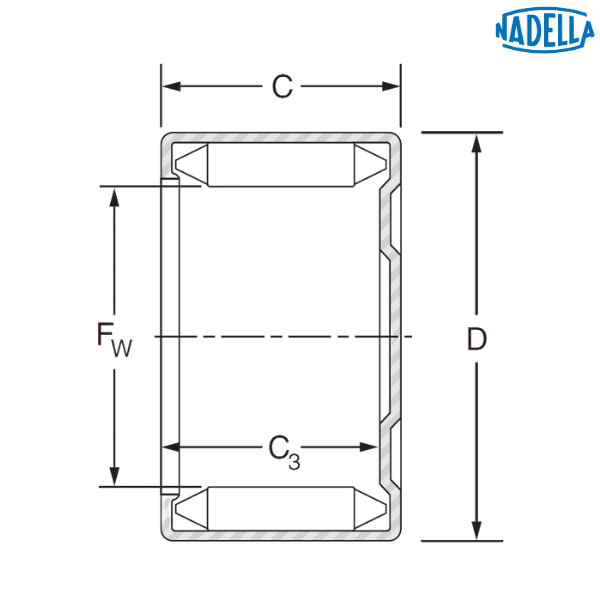

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 50 mm
Diameter of the Inner Raceway (Fw) - 50 mm
Outer Diameter (D) - 58 mm
Width (C) - 18 mm
Minimum Width (C3) - 15.7 mm
Dynamic Load Rating (C) - 36.5 kN
Static Load Rating (C0) - 92 kN
Speed Limit with Grease - 3900 rpm
Speed Limit with Oil - 6000 rpm
Weight - 0.085 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
Item Number - DLF 50 18 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 50 mm
Diameter of the Inner Raceway (Fw) - 50 mm
Outer Diameter (D) - 58 mm
Width (C) - 18 mm
Minimum Width (C3) - 15.7 mm
Dynamic Load Rating (C) - 36.5 kN
Static Load Rating (C0) - 92 kN
Speed Limit with Grease - 3900 rpm
Speed Limit with Oil - 6000 rpm
Weight - 0.085 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
