Description
Brand - DODGE
Item Number - DODGE - F2B-SCED-101
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 2-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.0625
Description - F2B-SCED-101
Weight (lbs) - 2.3

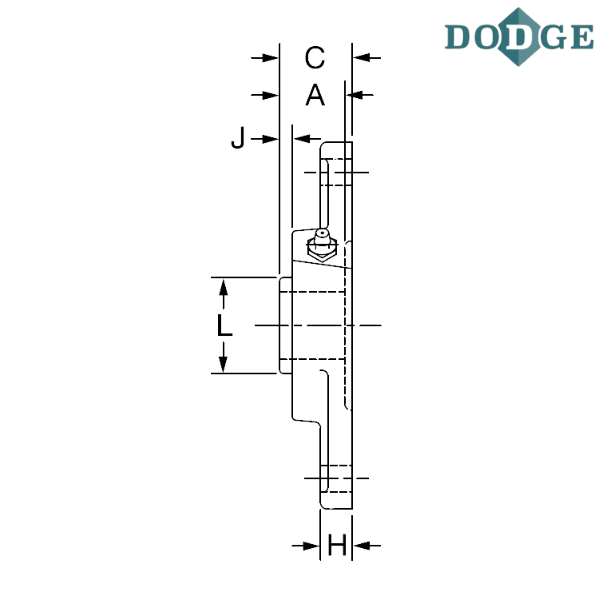

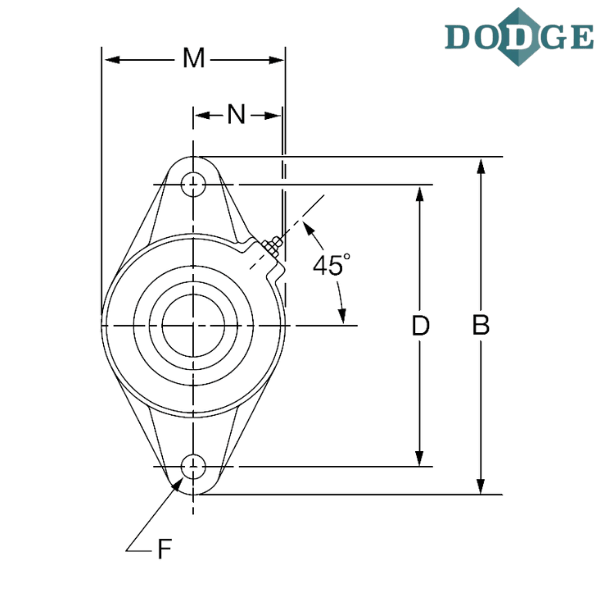

Length Through Bore (A) inch - 1.52
Overall Length (B) inch - 5.56
Thickness (C) inch - 1.56
Bolt Center to Center Length (D) inch - 4.59
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.5
J (inch) - 0.49
L (inch) - 1.57
Overall Width (M) inch - 3.13
N (inch) - 1.56
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SCED - Extreme duty

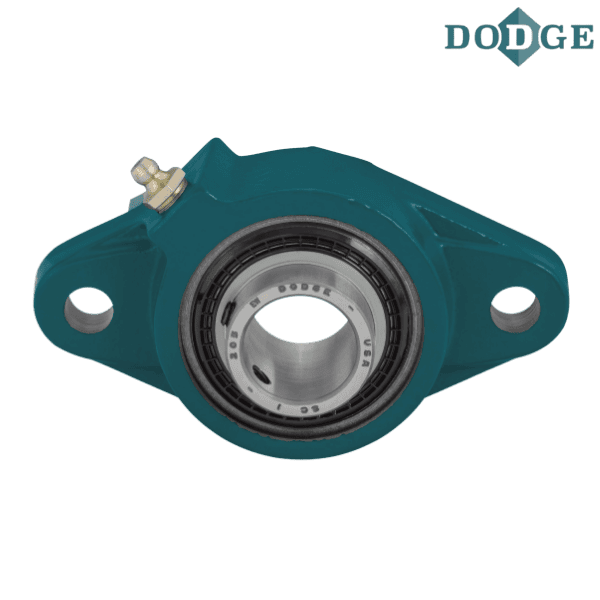

** Images are for representation purposes only
