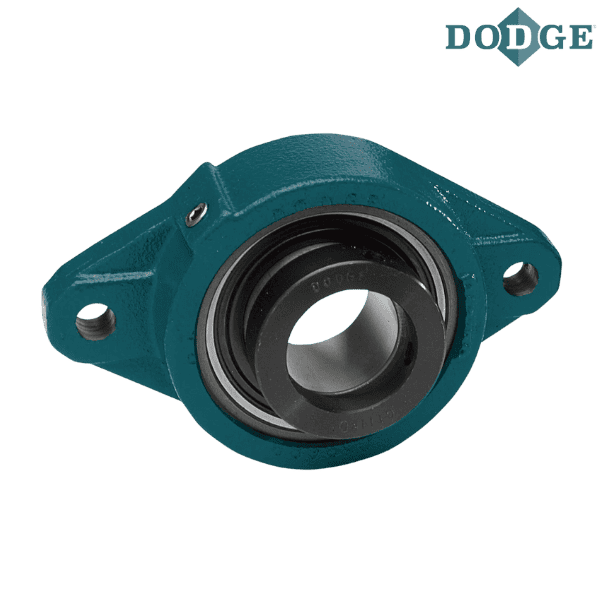

DODGE - F2B-SXR-200L

Brand - DODGE
Item Number - DODGE - F2B-SXR-200L
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Flange Bearings)
Series - 211
Shaft Size (inch) - 2
Description - F2B-SXR-200L
Description (No Lube/Sealed for Life) - F2B-SXR-200L-NL
Description (With Flingers) - F2B-SXR-200L-FF
Weight (lbs) - 7.8

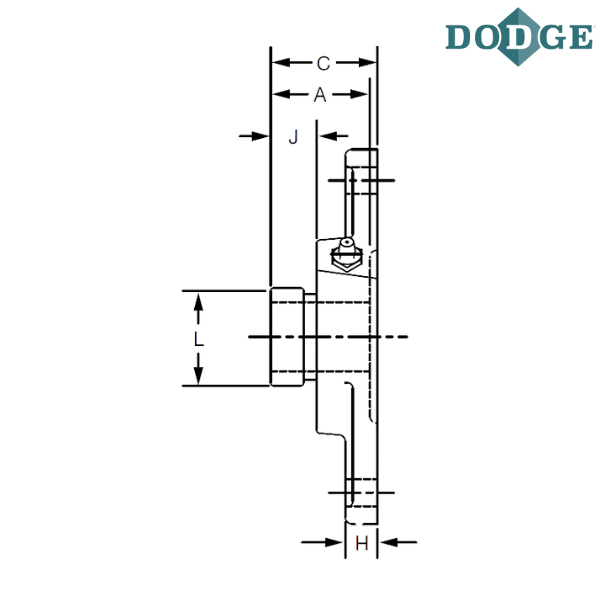

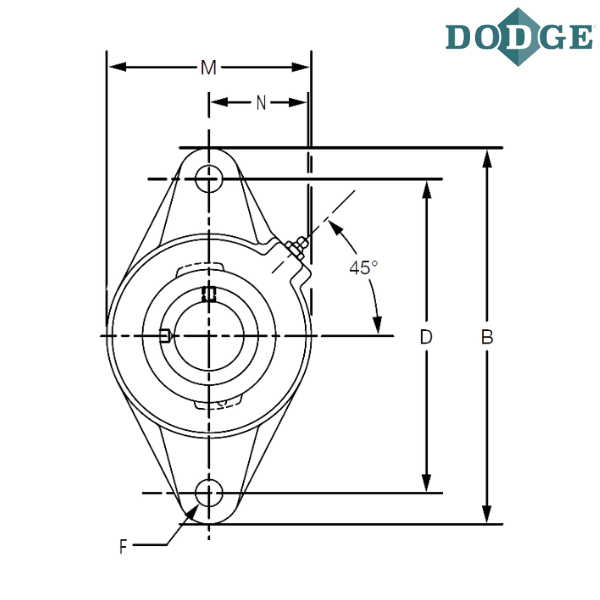

Length Through Bore (A) inch - 2.59
Overall Length (B) inch - 8.63
Thickness (C) inch - 2.65
Bolt Center to Center Length (D) inch - 7.25
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.67
J (inch) - 1.05
L (inch) - 3
Overall Width (M) inch - 5.25
N (inch) - 2.27
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
L - Next larger ring size

** Images are for representation purposes only
