DODGE - F2BZ-SXR-012

Brand - DODGE
Item Number - DODGE - F2BZ-SXR-012
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - F2BZ-SXR-012
Weight (lbs) - 1.3

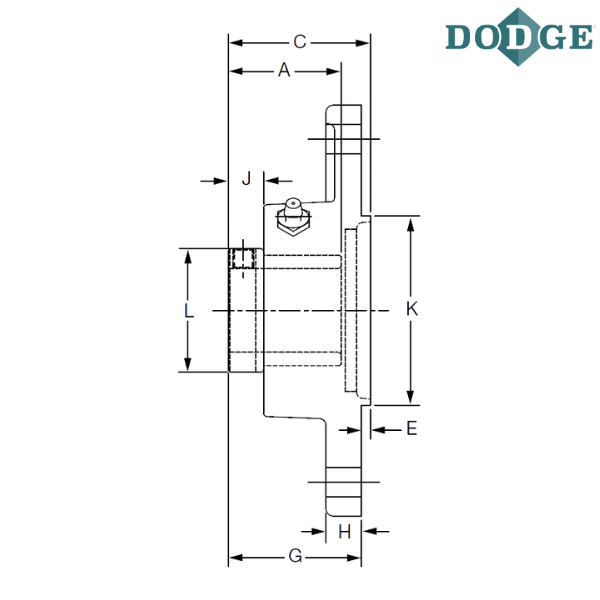

Length Through Bore (A) inch - 1.55

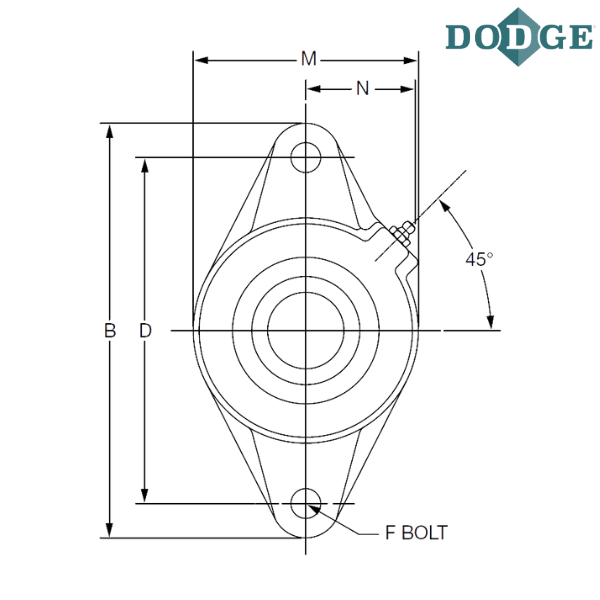

Overall Length (B) inch - 4.41
Thickness (C) inch - 1.8
Bolt Center to Center Length (D) inch - 3.53
Pilot Depth (E) inch - 0.14
F-Bolt Diameter (inch) - 0.375
G (inch) - 1.66
H (inch) - 0.5
J (inch) - 0.68
Pilot Diameter (K) inch - 2.165/2.163
L (inch) - 1.31
M (inch) - 2.38
N (inch) - 1.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXR - Wide inner ring, normal duty, Eccentric locking Collar

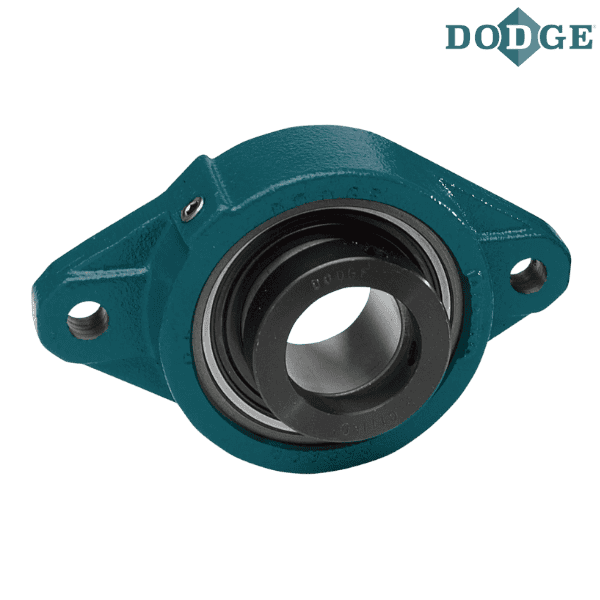

** Images are for representation purposes only
