Description
Brand - DODGE
Item Number - DODGE - F2BZ-SXV-104S
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Piloted Flange Bearings)
Series - 206
Shaft Size (inch) - 1.25
Description - F2BZ-SXV-104S
Weight (lbs) - 1.9

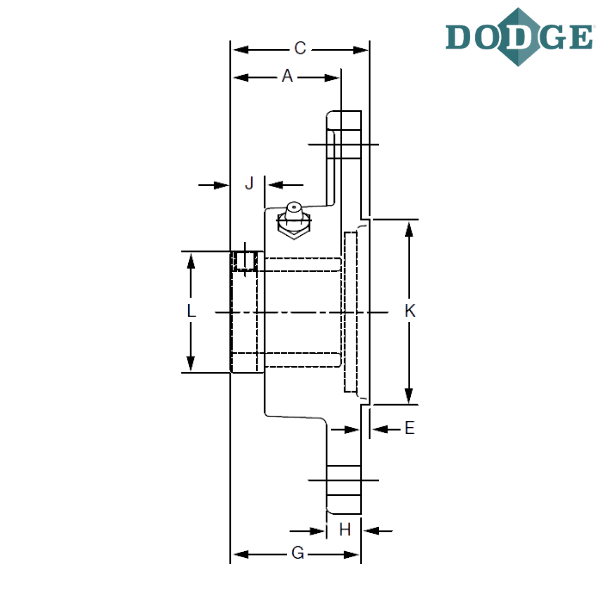

Length Through Bore (A) inch - 1.41

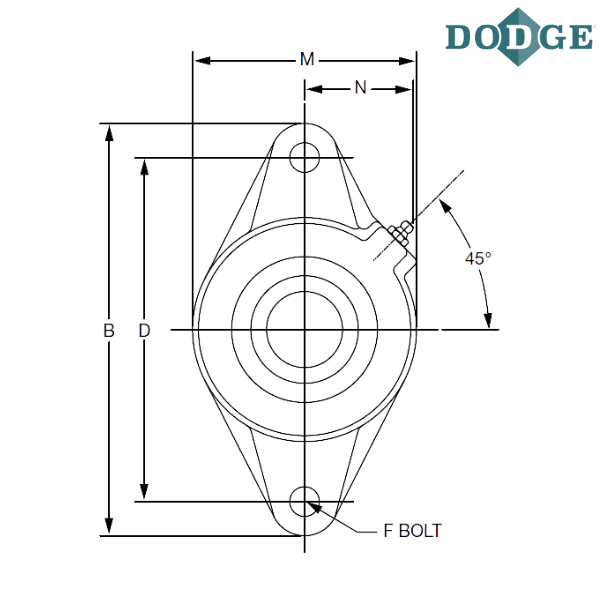

Overall Length (B) inch - 5.56
Thickness (C) inch - 1.79
Bolt Center to Center Length (D) inch - 4.59
Pilot Depth (E) inch - 0.12
F-Bolt Diameter (inch) - 0.4375
G (inch) - 1.67
H (inch) - 0.5
J (inch) - 0.61
Pilot Diameter (K) inch - 3.150/3.148
L (inch) - 1.75
Overall Width (M) inch - 3.13
N (inch) - 1.56
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
S - Next smaller ring size

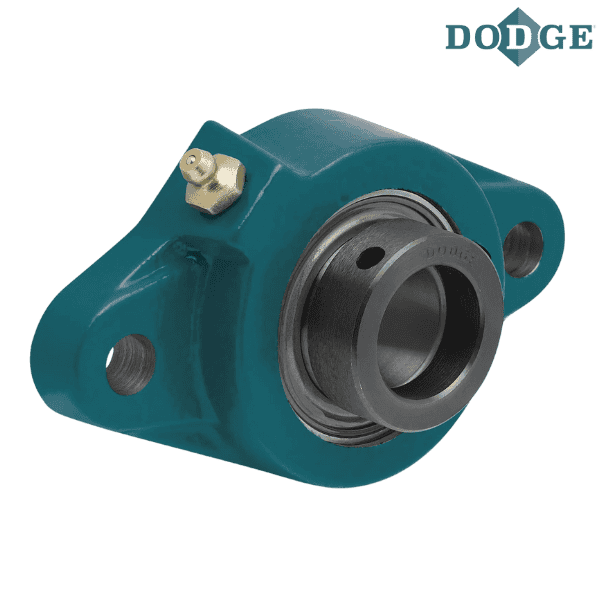

** Images are for representation purposes only
