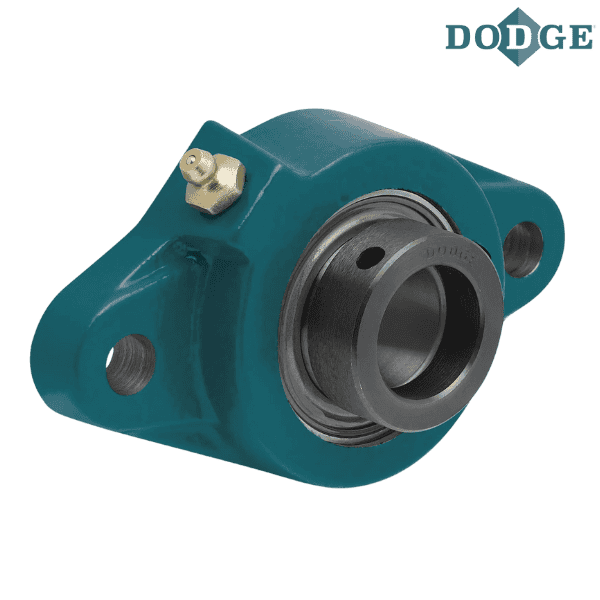

DODGE - F2BZ-SXV-200

Brand - DODGE
Item Number - DODGE - F2BZ-SXV-200
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Piloted Flange Bearings)
Series - 210
Shaft Size (inch) - 2
Description - F2BZ-SXV-200
Weight (lbs) - 4.8

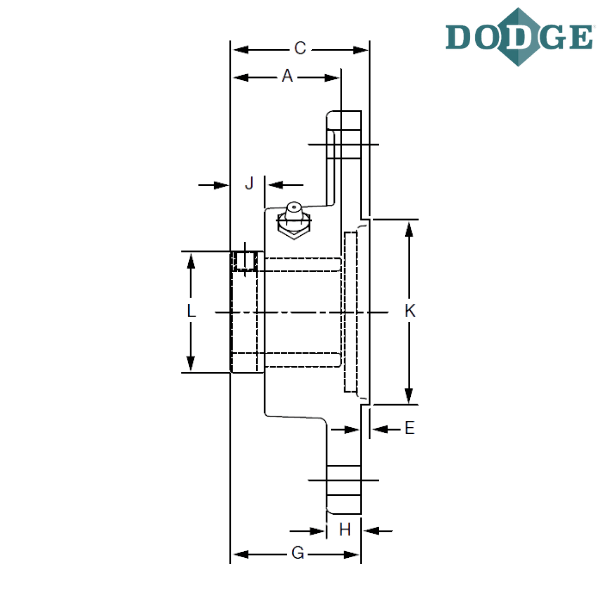

Length Through Bore (A) inch - 1.72

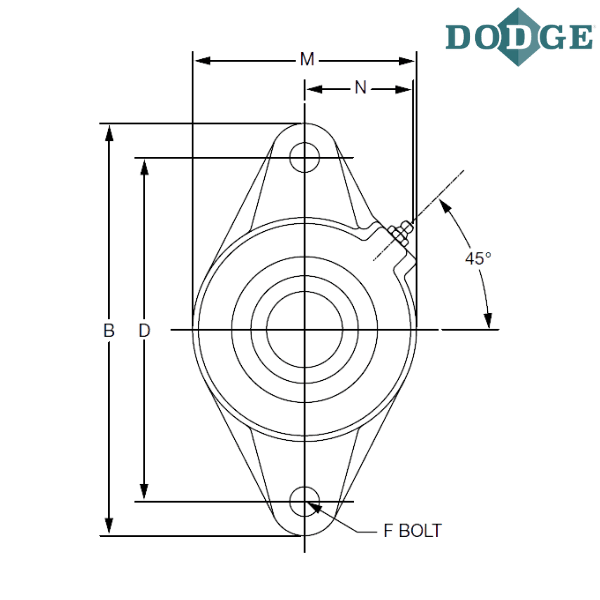

Overall Length (B) inch - 7.44
Thickness (C) inch - 2.28
Bolt Center to Center Length (D) inch - 6.19
Pilot Depth (E) inch - 0.16
F-Bolt Diameter (inch) - 0.5
G (inch) - 2.12
H (inch) - 0.63
J (inch) - 0.65
Pilot Diameter (K) inch - 4.134/4.132
L (inch) - 2.75
Overall Width (M) inch - 4.56
N (inch) - 2.03
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

** Images are for representation purposes only
