DODGE - F3R-IP-102R

Brand - DODGE
Item Number - DODGE - F3R-IP-102R
Category - IMPERIAL - IP Flange - Round with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22208
Shaft Size (inch) - 1.125
Part Name - F3R-IP-102R

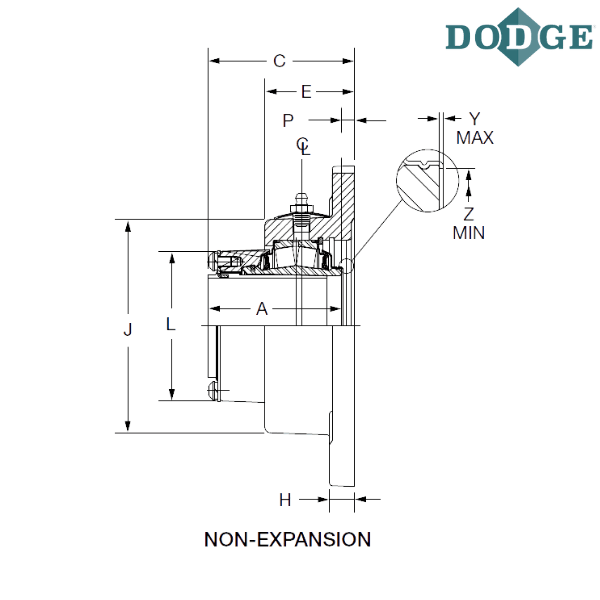

Length Through Bore (A) inch - 2.63

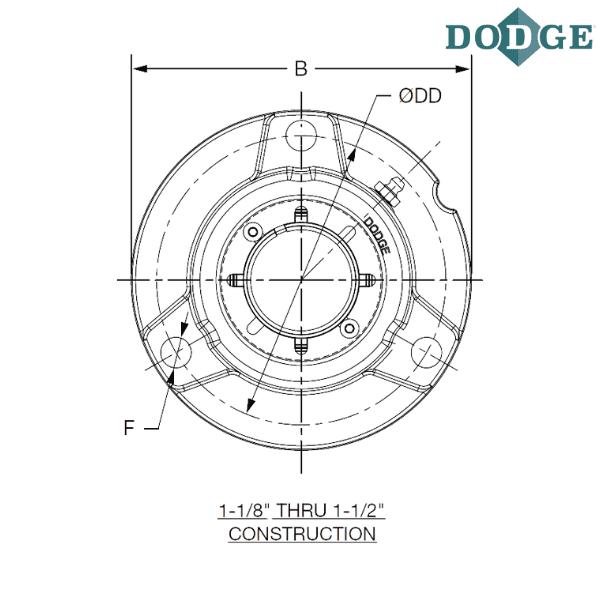

Overall Length (B) inch - 5.88
Thickness (C) inch - 2.86
Bolt Center to Center Length (D) inch - 3.53
DD (inch) - 5
E (inch) - 1.8
F-Bolt Diameter (inch) - 0.5*
H (inch) - 0.5
J (inch) - 3.75
L (inch) - 2.72
P (inch) - 0.23
Y (inch) - 0.02
Z (inch) - 1.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F3R - Flange Bearing 3 Bolt Cast Iron Round
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* 3 Equally spaced bolt holes

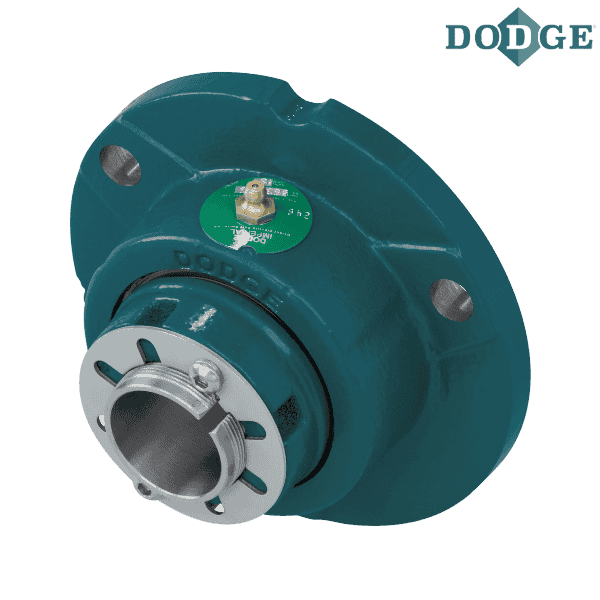

** Images are for representation purposes only
