Description
Brand - DODGE
Item Number - DODGE - INS-SC-90M
Category - Setscrew Ball Bearings (SC Normal Duty Bearing Inserts)
Series - 218
Shaft Size (mm) - 90
Description - INS-SC-90M
Description (High Temerature) - INS-SC-90M-HT
Weight (kg) - 3.3

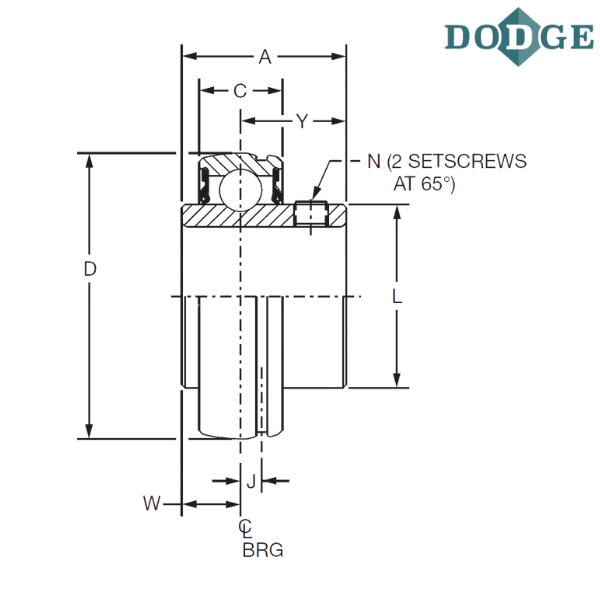

Overall Width (A) mm - 65
C (mm) - 34
Overall Outer Diameter (D) mm - 160
J (mm) - 7.6
L (mm) - 110.5
N - M10x1.5
W (mm) - 24.4
Y (mm) - 40.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric

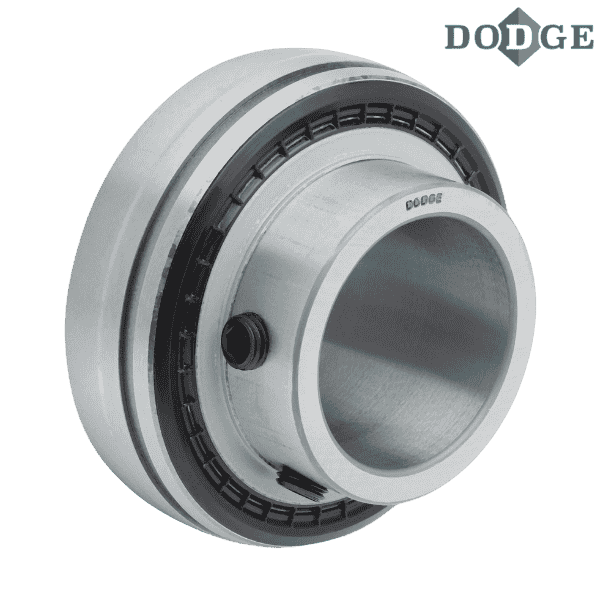

** Images are for representation purposes only
