Description
Brand - DODGE

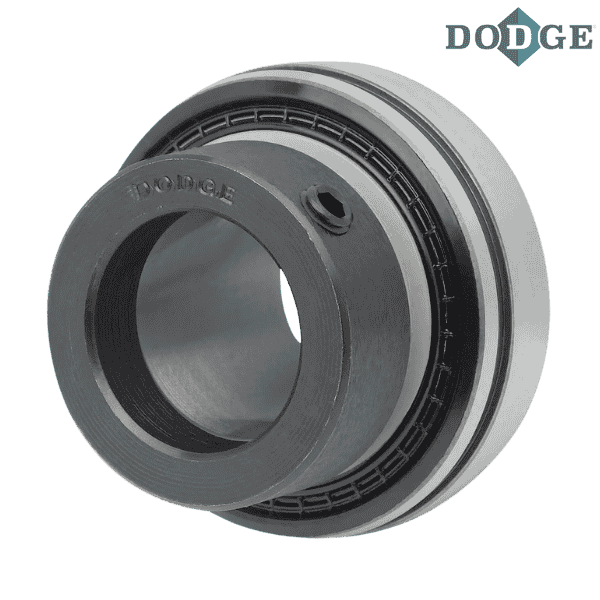

Item Number - DODGE - INS-SXRH-111-E
Category - Eccentric Collar Ball Bearings (SXRH-E Expansion and SXRH Non-Expansion Normal Duty Bearing Inserts)
Series - 209
Shaft Size (inch) - 1.6875
Description - INS-SXRH-111-E
Weight of Expansion Insert (lbs) - 2.89

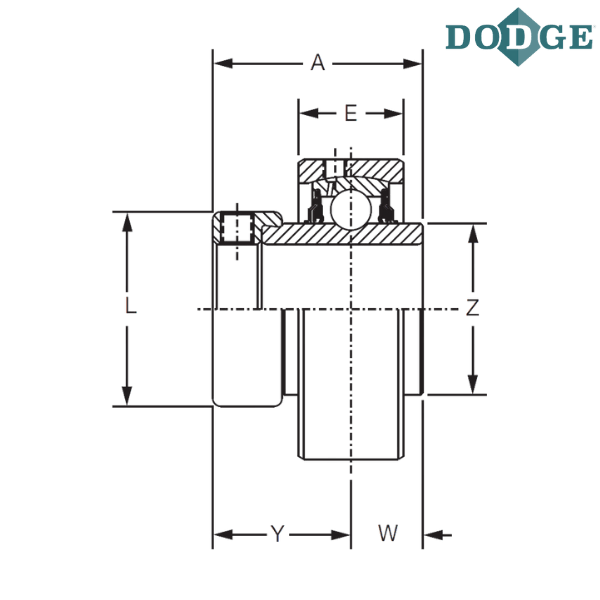

A (inch) - 2.13

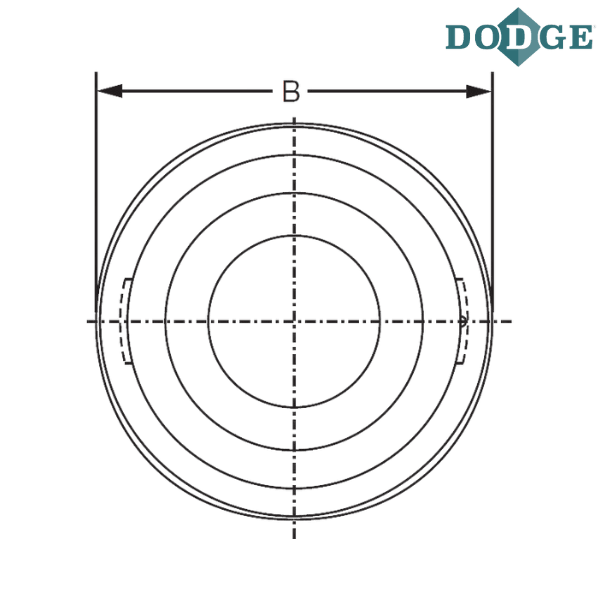

B (inch) - 3.813
C (inch) - 0.87
D (inch) - 3.3465
E (inch) - 1.2
J (inch) - 0.25
L (inch) - 2.5
N (inch) - 5/16-24
W (inch) - 0.75
Y (inch) - 1.38
Z (inch) - 2.22
Notes :
INS - Insert
SXR - Wide inner ring, normal duty, Eccentric locking Collar
H - High backing height
E - Expansion
** Images are for representation purposes only
