Description
Brand - DODGE
Item Number - DODGE - LF-DL-015
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 3-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 0.9375
Description - LF-DL-015
Weight (lbs) - 1.05

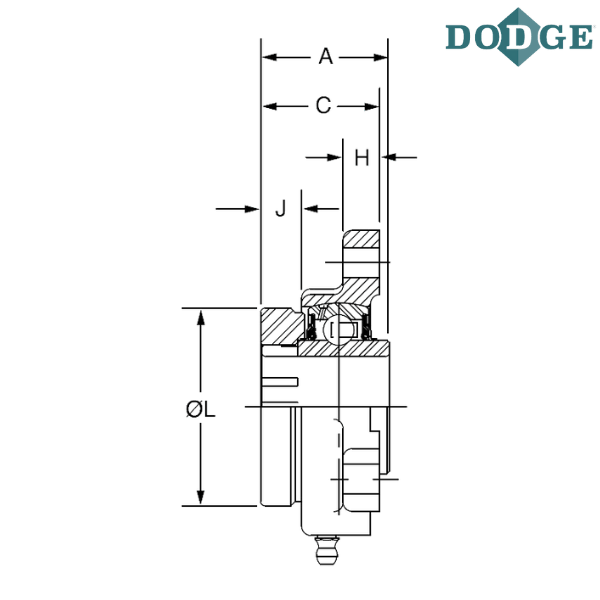

Length Through Bore (A) inch - 1.44

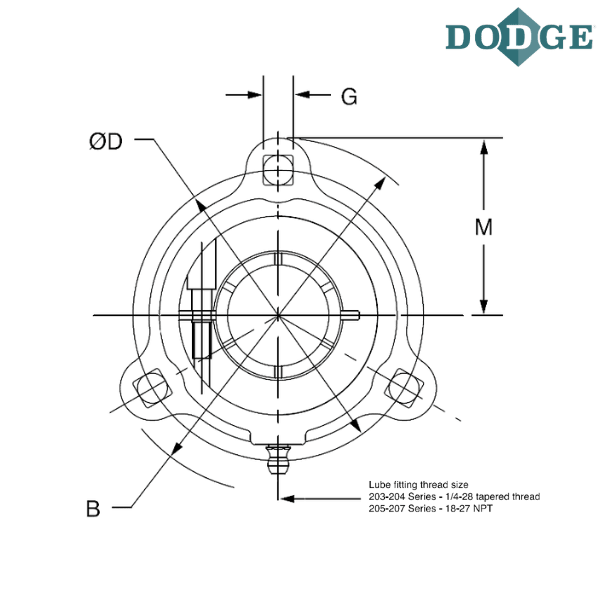

B (inch) - 3.75
C (inch) - 1.35
Bolt Circle (D) inch - 3
Bolt Diameter (G) inch - 0.34
H (inch) - 0.42
J (inch) - 0.48
L (inch) - 1.99
M (inch) - 1.88
N (inch) - 1.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LF - Light duty flange, 3-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar

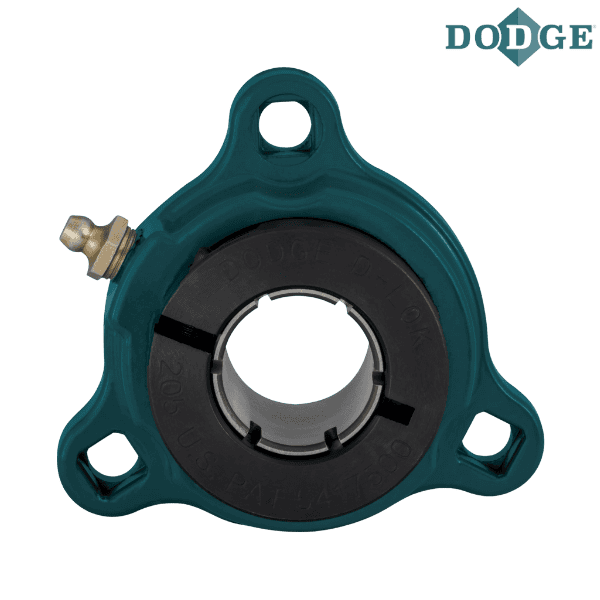

** Images are for representation purposes only
