DODGE - LFT-GT-17M

Brand - DODGE
Item Number - DODGE - LFT-GT-17M
Category - GRIP TIGHT Adapter Ball Bearings (GT LFT Normal Duty 2-Bolt Flange Bearings)
Series - 203
Shaft Size (mm) - 17
Description - LFT-GT-17M
Part Number (Unit without Adapter Sleeve and Nut) - 136355
Description (Unit without Adapter Sleeve and Nut) - LFT-GT-03
Part Number (Adapter and Nut Assembly) - 136589
Description (Adapter and Nut Assembly) - AN-GT-03-17M-D
Weight (kg) - 0.31

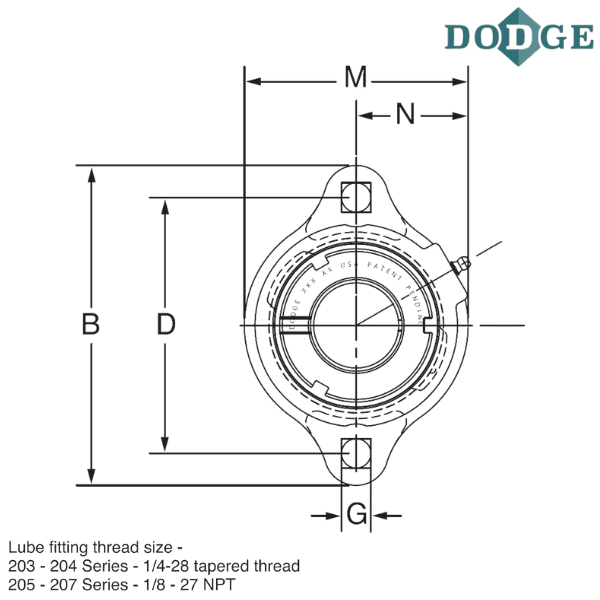

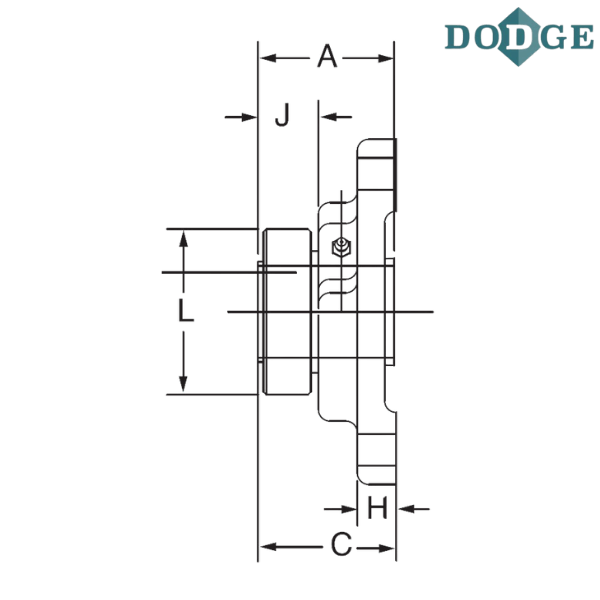

Length Through Bore (A) mm - 32.8
Overall Length (B) mm - 81
Thickness (C) mm - 33
Bolt Center to Center Length (D) mm - 63.5
G (mm) - 7.1
H (mm) - 9.7
J (mm) - 14.7
L (mm) - 35.6
Overall Width (M) mm - 54.1
N (mm) - 31.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2-bolt light duty flange
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric
