DODGE - P2B-DLAH-110L

Brand - DODGE
Item Number - DODGE - P2B-DLAH-110L
Category - D-LOK® Ball Bearings (DLMAH Medium Duty Air Handling Pillow Blocks)
Series - 209
Shaft Size (inch) - 1.625
Description - P2B-DLAH-110L
Weight (lbs) - 6.8

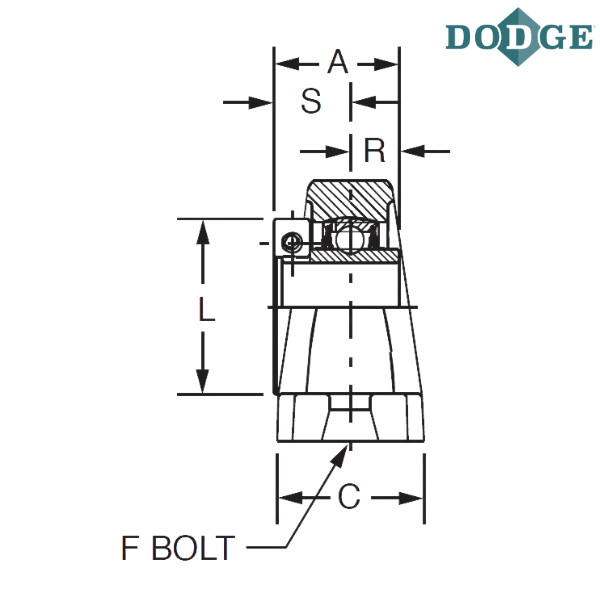

Length Through Bore (A) inch - 51.1

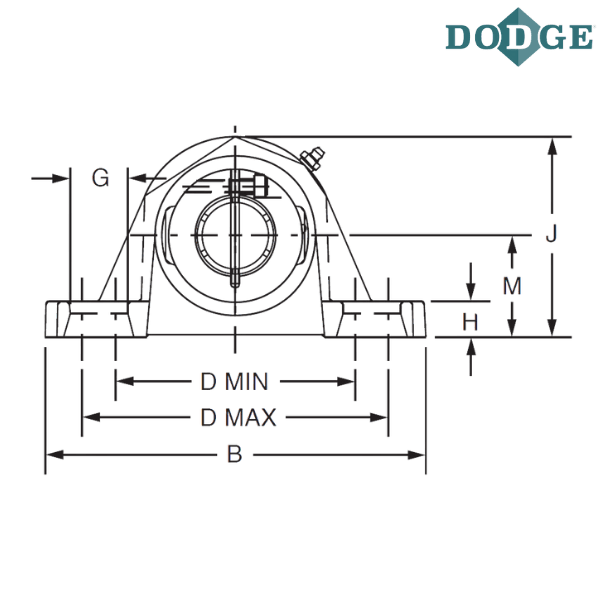

Overall Length (B) inch - 190.5
Width (C) inch - 54.1
Bolt to Bolt Minimum Distance (D min) inch - 138.2
Bolt to Bolt Maximum Distance (D max) inch - 153.9
F-Bolt Diameter (inch) - M12
G (mm) - 22.4
H (mm) - 22.4
Overall Height (J) inch - 112.8
L (mm) - 75.9
Base to Center Height (M) inch - 54
R (mm) - 19.1
S (mm) - 32

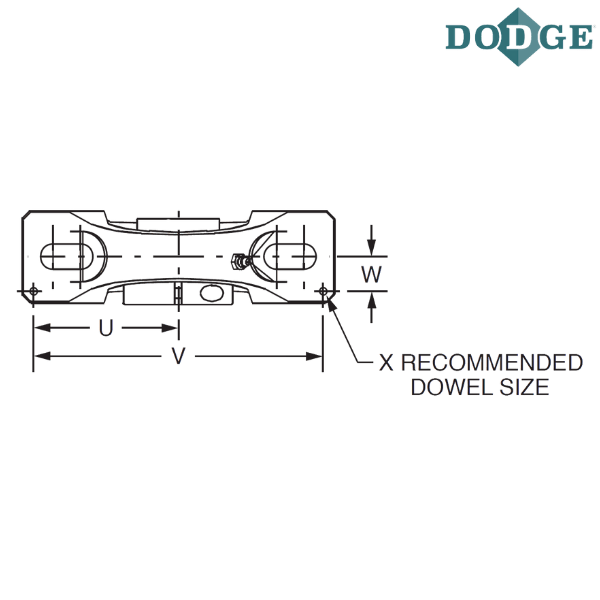

U (mm) - 85.9
V (mm) - 171.5
W (mm) - 17.5
X (mm) - 4.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
AH - Air handling
L - Next larger ring size

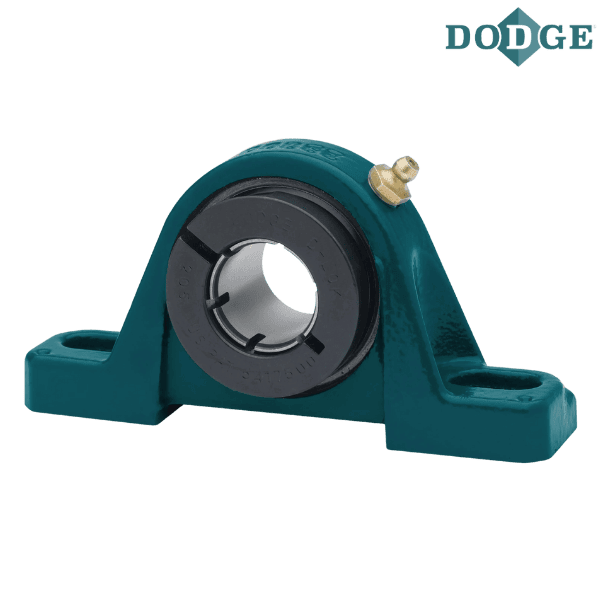

** Images are for representation purposes only
