Description
Brand - DODGE
Item Number - DODGE - P2B-DLB-45M
Category - D-LOK® Ball Bearings (DLB Normal Duty Pillow Blocks)
Series - 209
Shaft Size (mm) - 45
Description - P2B-DLB-45M
Weight (kg) - 3.1

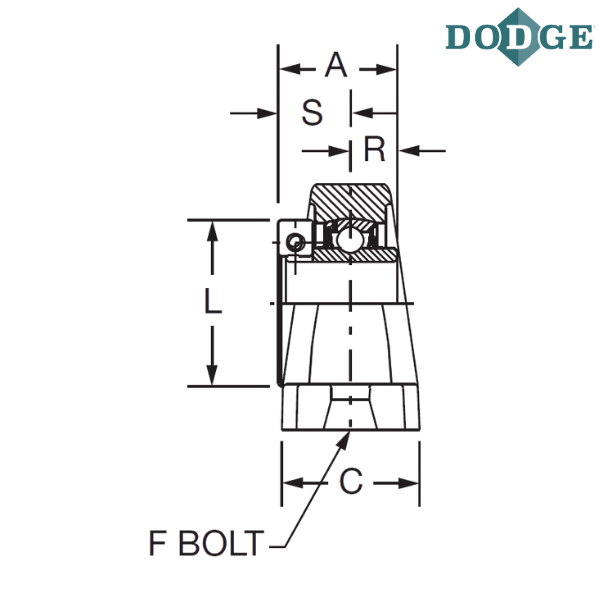

Length Through Bore (A) mm - 51.1

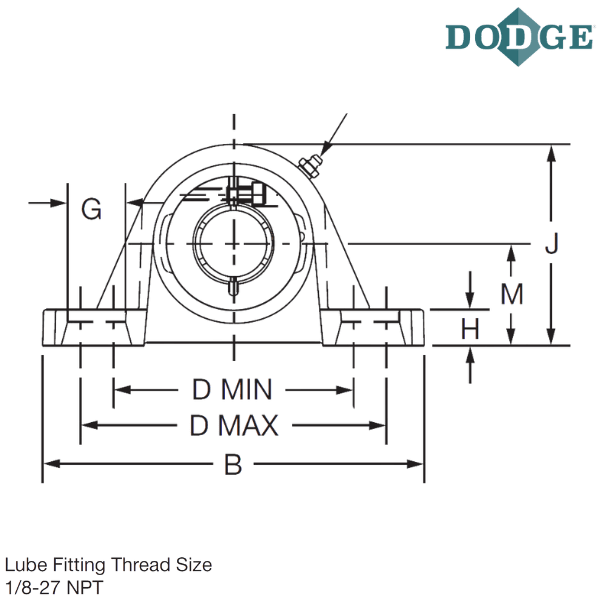

Overall Length (B) mm - 189
Width (C) mm - 50.8
Bolt to Bolt Minimum Distance (D min) mm - 139.7
Bolt to Bolt Maximum Distance (D max) mm - 157.2
F-Bolt Diameter - M12
G (mm) - 22.9
H (mm) - 17.5
Overall Height (J) mm - 106.9
L (mm) - 75.9
Base to Center Height (M) mm - 52.3
R (mm) - 19.1
S (mm) - 32

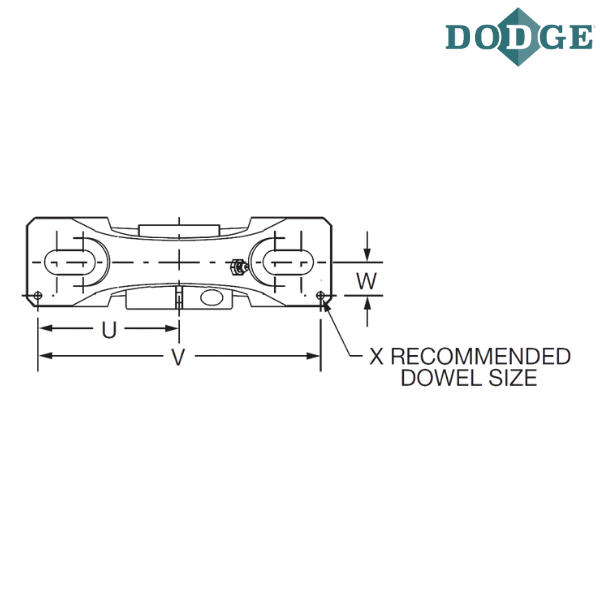

U (mm) - 85.9
V (mm) - 171.7
W (mm) - 17.5
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
B - Low backing height pillow block
M - Metric

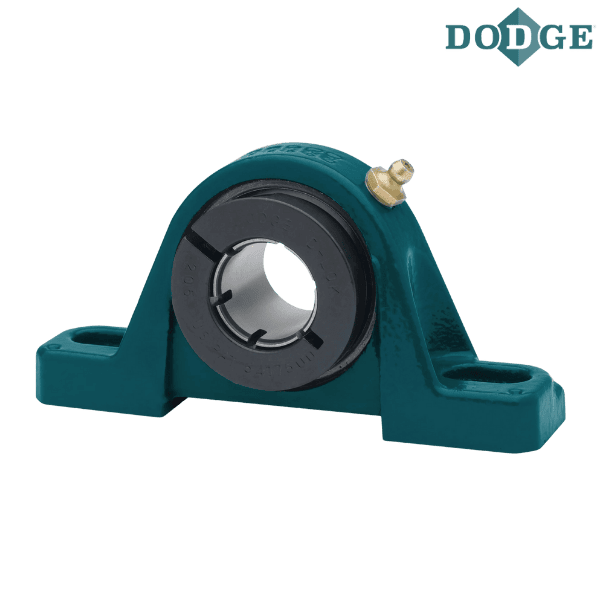

** Images are for representation purposes only
