Description
Brand - DODGE
Item Number - DODGE - P2B-DLB-60M
Category - D-LOK® Ball Bearings (DLB Normal Duty Pillow Blocks)
Series - 212
Shaft Size (mm) - 60
Description - P2B-DLB-60M
Weight (kg) - 7

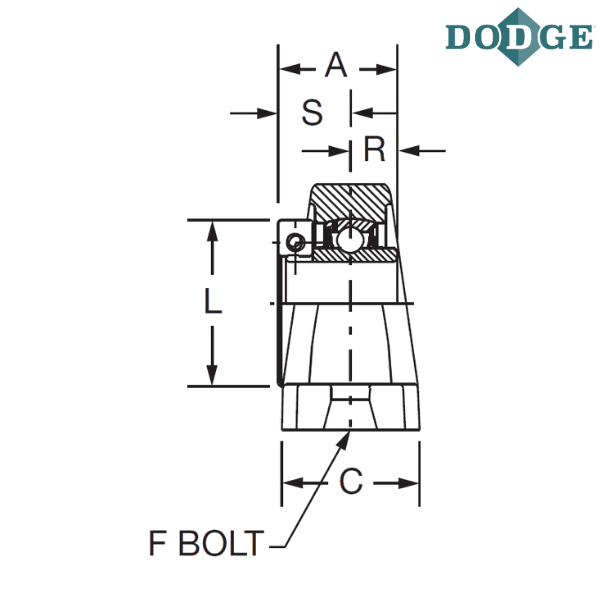

Length Through Bore (A) mm - 60.5

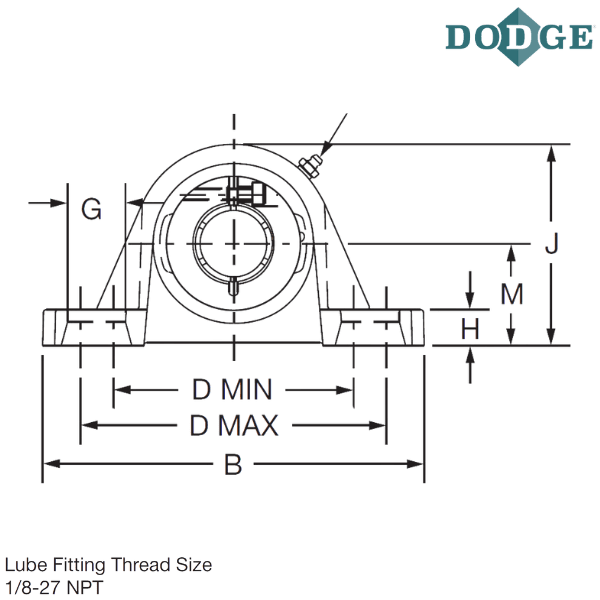

Overall Length (B) mm - 241.3
Width (C) mm - 60.2
Bolt to Bolt Minimum Distance (D min) mm - 174.8
Bolt to Bolt Maximum Distance (D max) mm - 201.7
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 20.6
Overall Height (J) mm - 135.6
L (mm) - 104.4
Base to Center Height (M) mm - 68.3
R (mm) - 22.9
S (mm) - 37.6

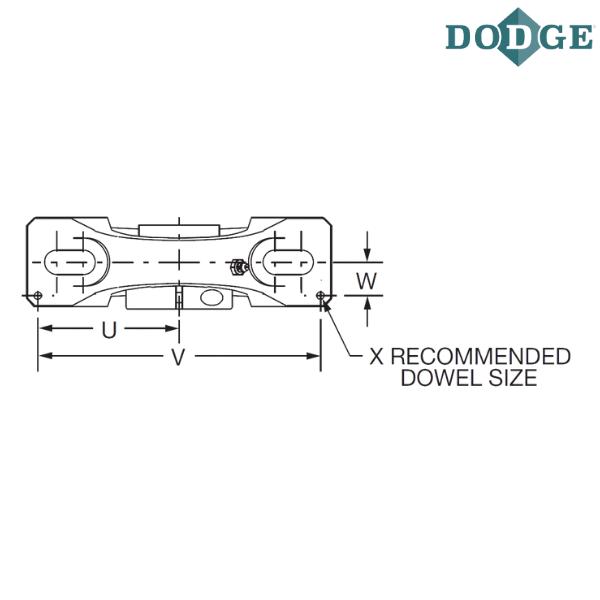

U (mm) - 108
V (mm) - 215.9
W (mm) - 22.4
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
B - Low backing height pillow block
M - Metric

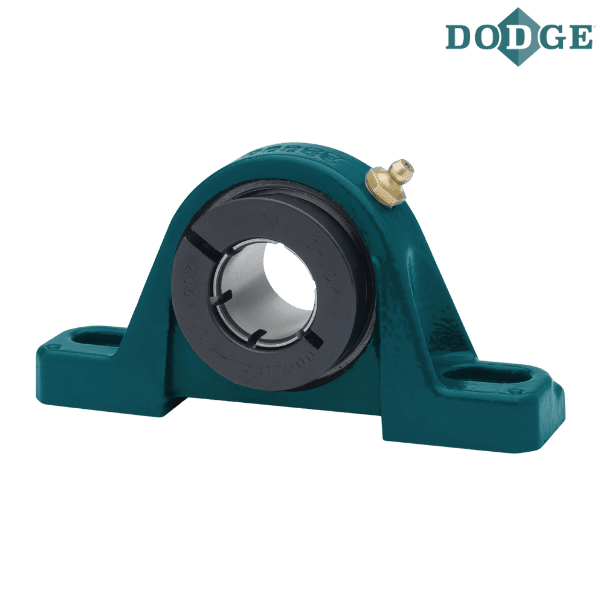

** Images are for representation purposes only
