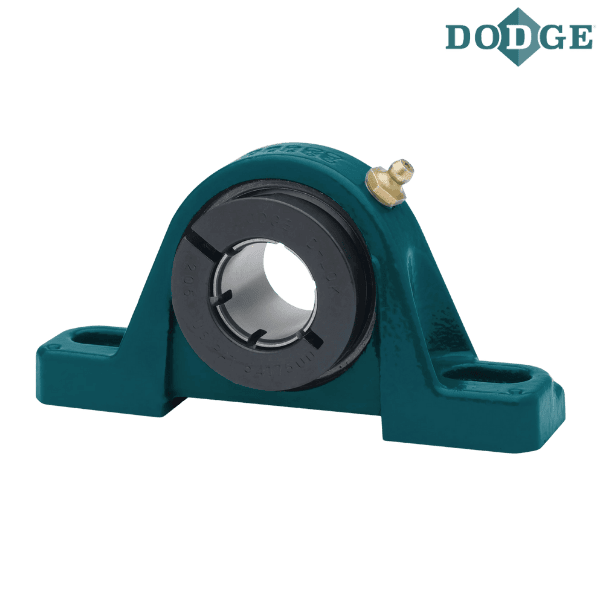

DODGE - P2B-DLUAH-30M

Brand - DODGE
Item Number - DODGE - P2B-DLUAH-30M
Category - D-LOK® Ball Bearings (DLAH Normal Duty Air Handling Pillow Blocks)
Series - 206 (DLU)
Shaft Size (mm) - 30
Description - P2B-DLUAH-30M
Weight (kg) - 1.7

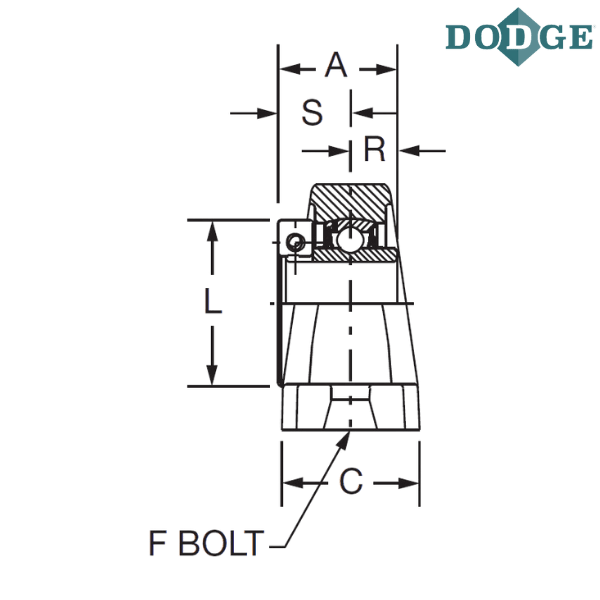

Length Through Bore (A) mm - 39.6

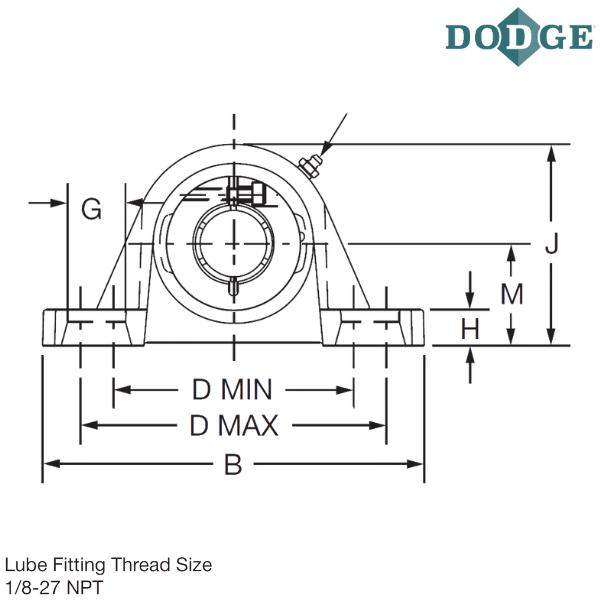

Overall Length (B) mm - 158.8
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 108
Bolt to Bolt Maximum Distance (D max) mm - 127
F-Bolt Diameter - M12
G (mm) - 23.9
H (mm) - 19.1
Overall Height (J) mm - 84.1
L (mm) - 56.4
Base to Center Height (M) mm - 42.9
R (mm) - 14.7
S (mm) - 24.9

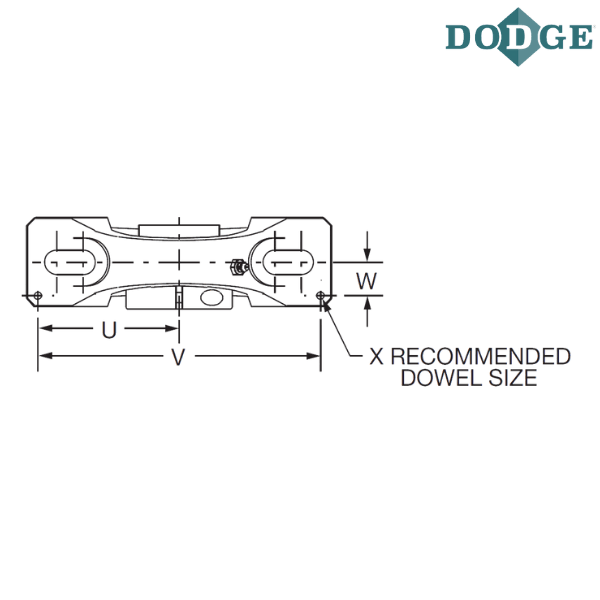

U (mm) - 73.2
V (mm) - 146.3
W (mm) - 14.2
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
AH - Air handling
M - Metric

** Images are for representation purposes only
