DODGE - P2B-SC-106-HT

Brand - DODGE
Item Number - DODGE - P2B-SC-106-HT
Category - High Temperature Setscrew Ball Bearing (Pillow Blocks)
Series - 207
Description - P2B-SC-106-HT
Shaft Size (inch) - 1.3125
Weight (lbs) - 4.4

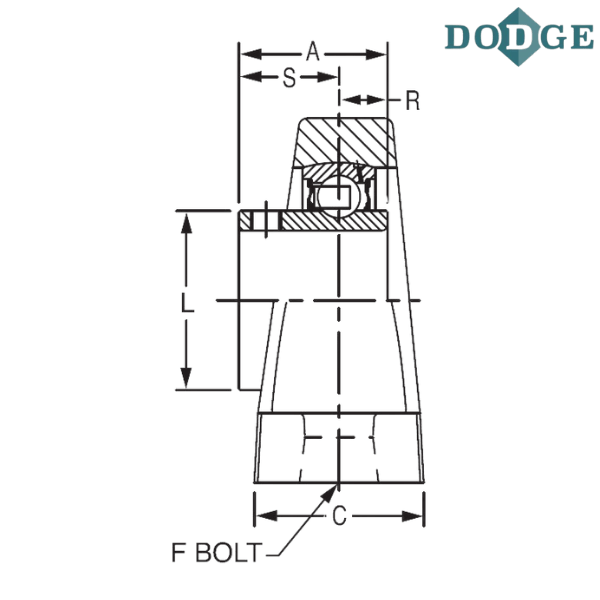

Length Through Bore (A) inch - 1.71

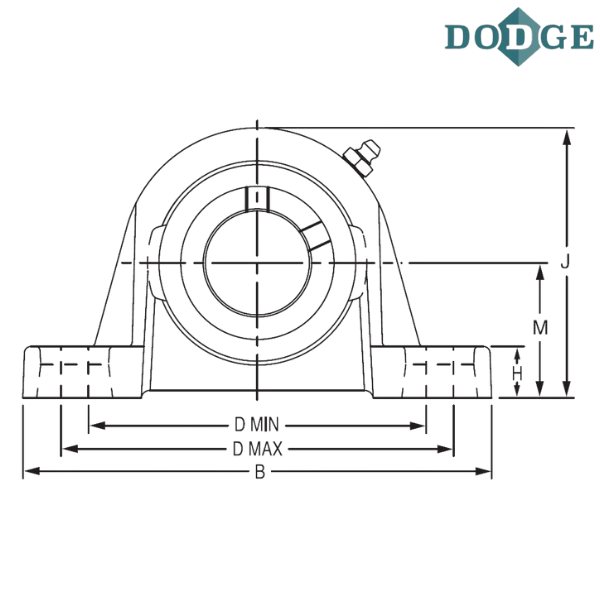

Overall Length (B) inch - 6.5
Width (C) inch - 1.75
Bolt to Bolt Minimum Distance (D min) inch - 4.68
Bolt to Bolt Maximum Distance (D max) inch - 5.44
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.94
H (inch) - 0.71
Overall Height (J) inch - 3.75
L (inch) - 1.84
Base to Center Height (M) inch - 1.88
R (inch) - 0.67
S (inch) - 1.04

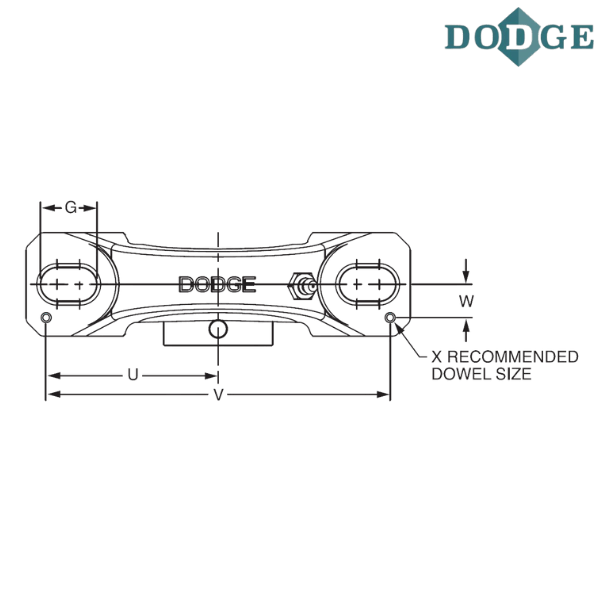

U (inch) - 2.91
V (inch) - 5.82
W (inch) - 0.56
X (inch) - 0.12

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

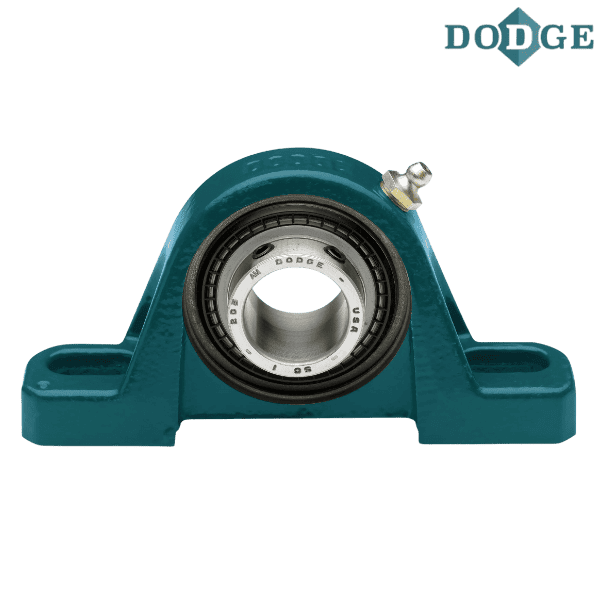

** Images are for representation purposes only
