DODGE - P2B-SC-45M-HT

Brand - DODGE
Item Number - DODGE - P2B-SC-45M-HT
Category - High Temperature Setscrew Ball Bearing (Pillow Blocks)
Series - 209
Description - P2B-SC-45M-HT
Shaft Size (mm) - 45
Weight (kg) - 2.2

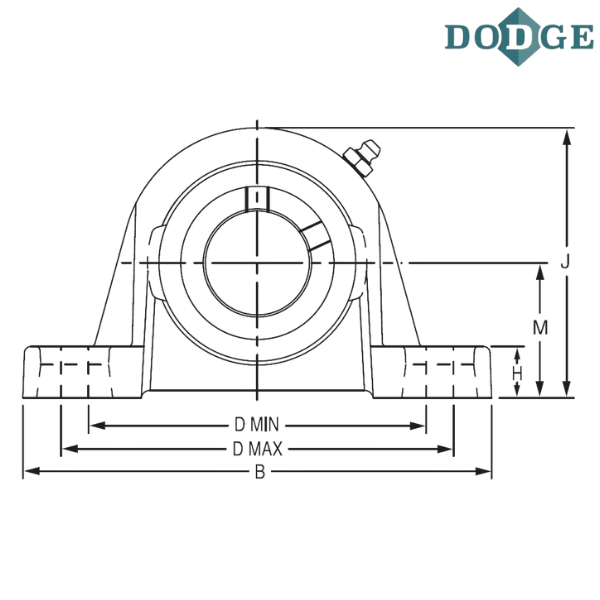

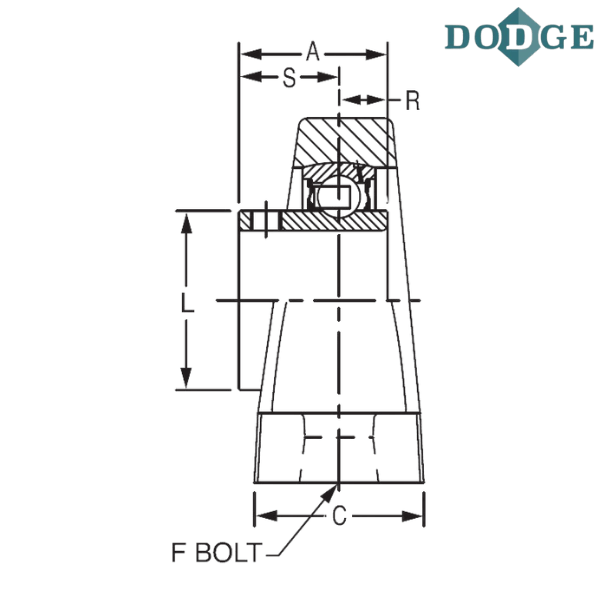

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 189
Width (C) mm - 50.8
Bolt to Bolt Minimum Distance (D min) mm - 139.7
Bolt to Bolt Maximum Distance (D max) mm - 157.2
F-Bolt Diameter - M12
G (mm) - 22.9
H (mm) - 19.1
Overall Height (J) mm - 108.7
L (mm) - 56.4
Base to Center Height (M) mm - 54
R (mm) - 19.1
S (mm) - 30.2

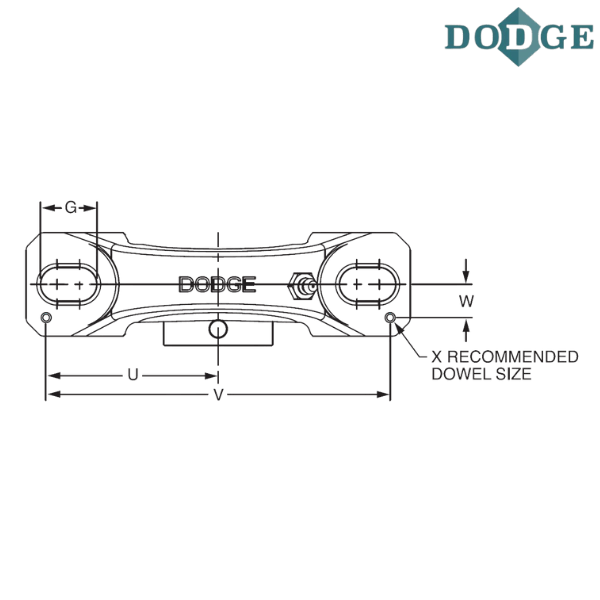

U (mm) - 85.9
V (mm) - 171.7
W (mm) - 17.5
X (mm) - 3

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

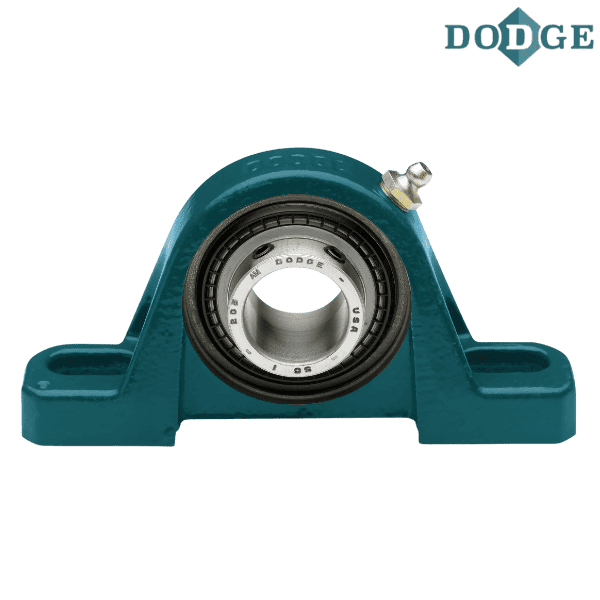

** Images are for representation purposes only
