DODGE - P2B-SXRH-106-E

Brand - DODGE
Item Number - DODGE - P2B-SXRH-106-E
Category - Eccentric Collar Ball Bearings (SXRH-E Expansion and SXR Non-Expansion Normal Duty Pillow Blocks)
Series - 207
Shaft Size (inch) - 1.375
Description - P2B-SXRH-106-E
Weight (lbs) - 7.3

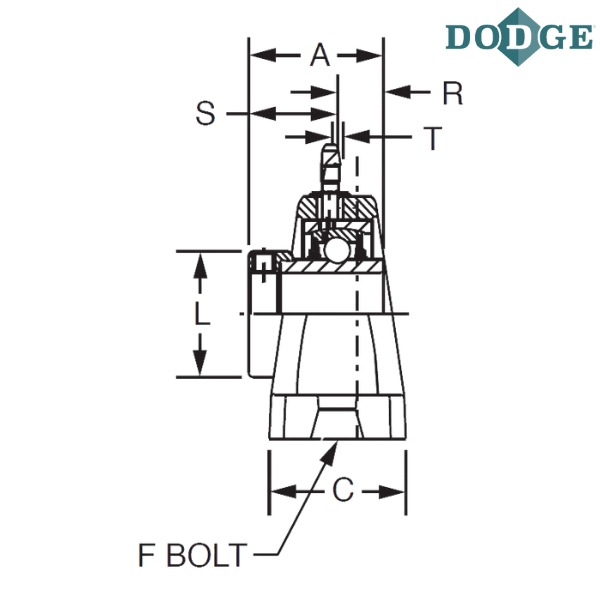

Length Through Bore (A) inch - 1.95

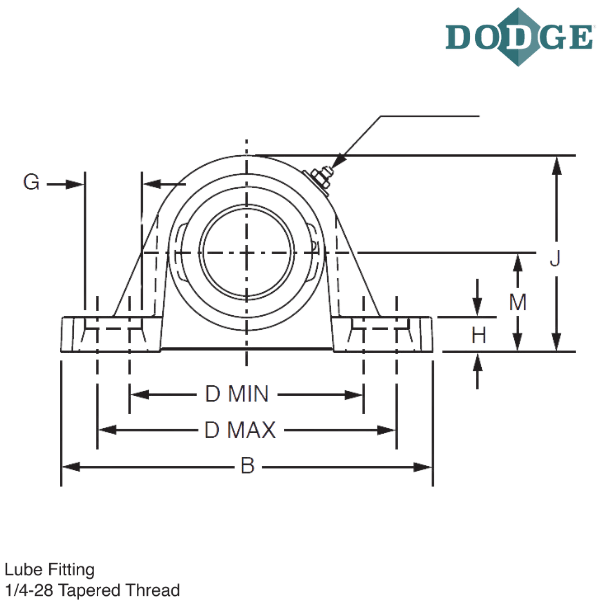

Overall Length (B) inch - 7.25
Width (C) inch - 1.93
Bolt to Bolt Minimum Distance (D min) inch - 5.18
Bolt to Bolt Maximum Distance (D max) inch - 5.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.91
H (inch) - 0.93
Overall Height (J) inch - 4.19
L (inch) - 2.13
M (inch) - 2.13
R (inch) - 0.67
S (inch) - 1.28
Total Expansion (T) inch - 0.16

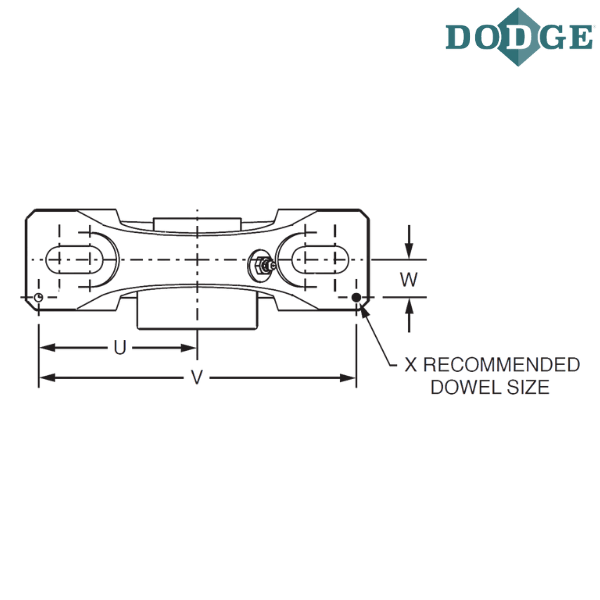

U (inch) - 3.26
V (inch) - 6.52
W (inch) - 0.69
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
H - High backing height
E - Expansion

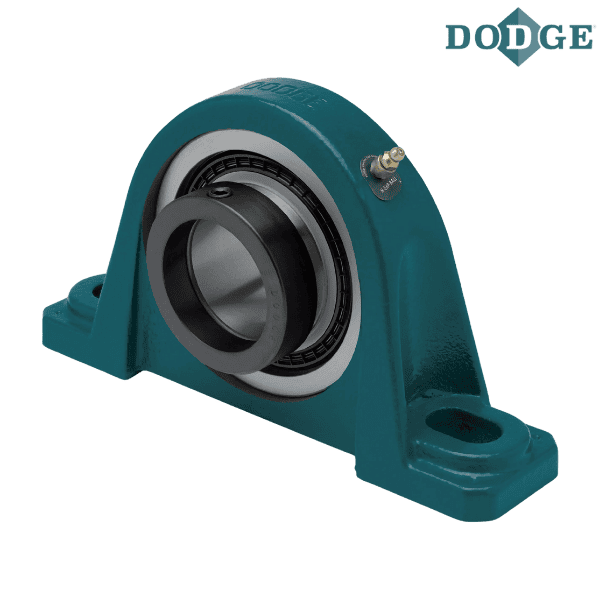

** Images are for representation purposes only
