DODGE - P2B-SXRH-35M-E

Brand - DODGE
Item Number - DODGE - P2B-SXRH-35M-E
Category - Eccentric Collar Ball Bearings (SXRH-E Expansion and SXR Non-Expansion Normal Duty Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - P2B-SXRH-35M-E
Part Number (Non-Expansion) - 136259
Description (Non-Expansion) - P2B-GTM-35M
Weight (kg) - 3.3

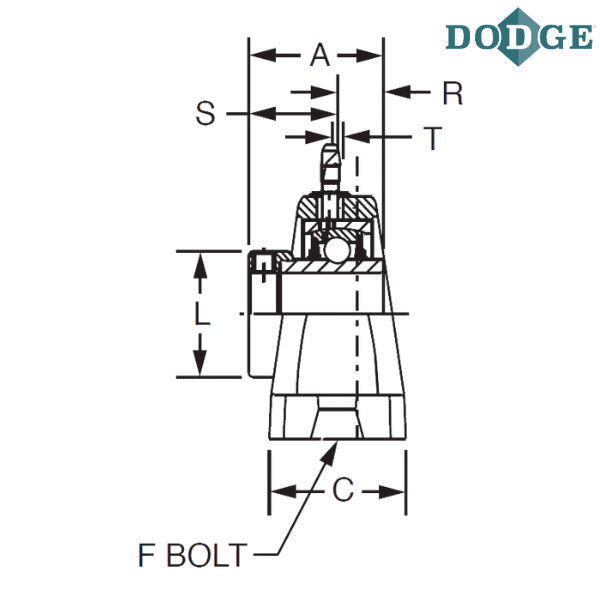

Length Through Bore (A) mm - 49.5

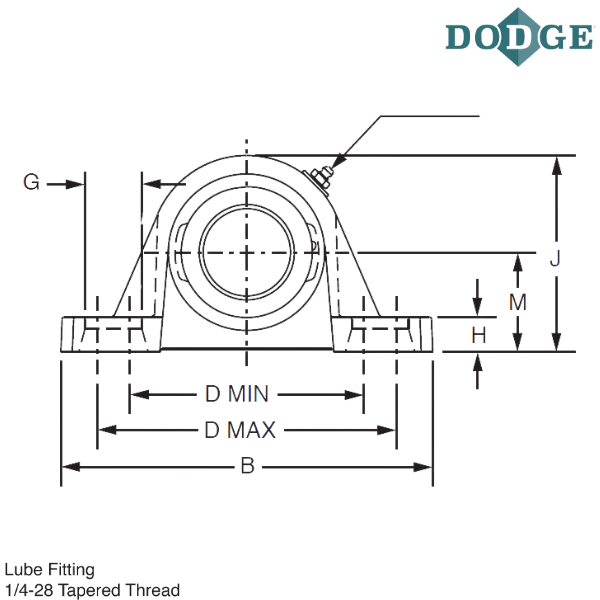

Overall Length (B) mm - 184.2
Width (C) mm - 49
Bolt to Bolt Minimum Distance (D min) mm - 131.6
Bolt to Bolt Maximum Distance (D max) mm - 149.4
F-Bolt Diameter - M12
G (mm) - 23.1
H (mm) - 23.6
Overall Height (J) mm - 106.4
L (mm) - 54.1
M (mm) - 54.1
R (mm) - 17
S (mm) - 32.5
Total Expansion (T) mm - 4.1

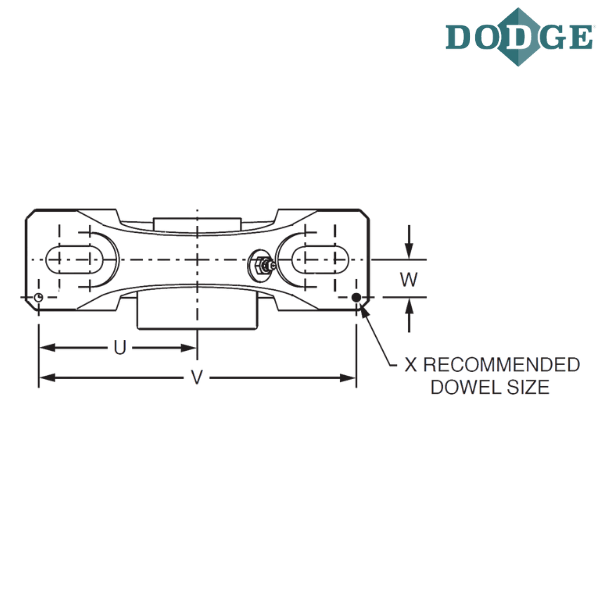

U (mm) - 82.8
V (mm) - 165.6
W (mm) - 17.5
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
H - High backing height
M - Metric
E - Expansion

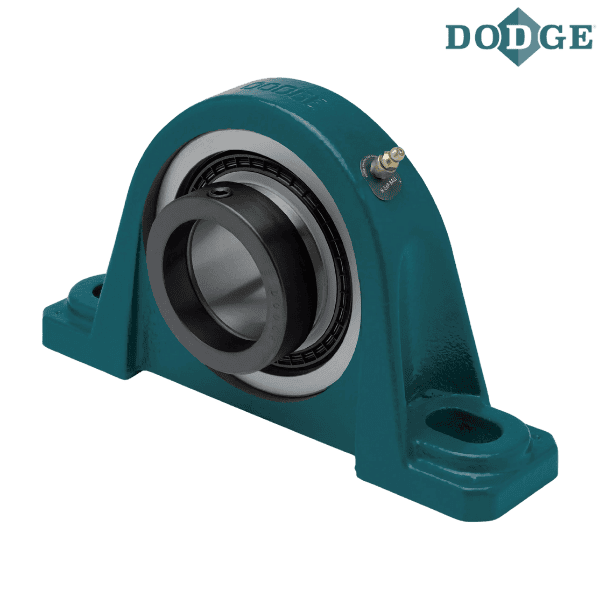

** Images are for representation purposes only
