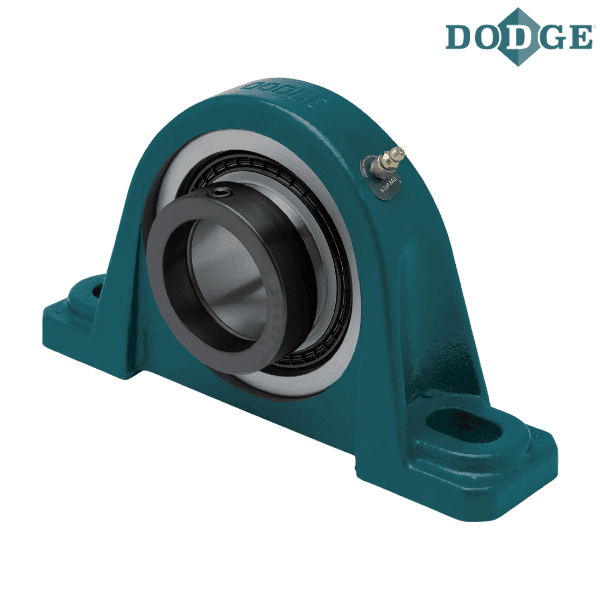

DODGE - P2B-SXRH-55M-E

Brand - DODGE
Item Number - DODGE - P2B-SXRH-55M-E
Category - Eccentric Collar Ball Bearings (SXRH-E Expansion and SXR Non-Expansion Normal Duty Pillow Blocks)
Series - 211
Shaft Size (mm) - 55
Description - P2B-SXRH-55M-E
Part Number (Non-Expansion) - 136263
Description (Non-Expansion) - P2B-GTM-55M
Weight (kg) - 7.4

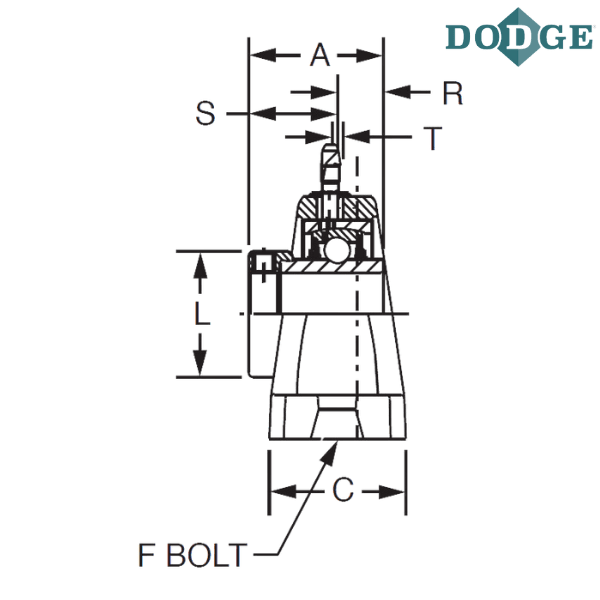

Length Through Bore (A) mm - 65.8

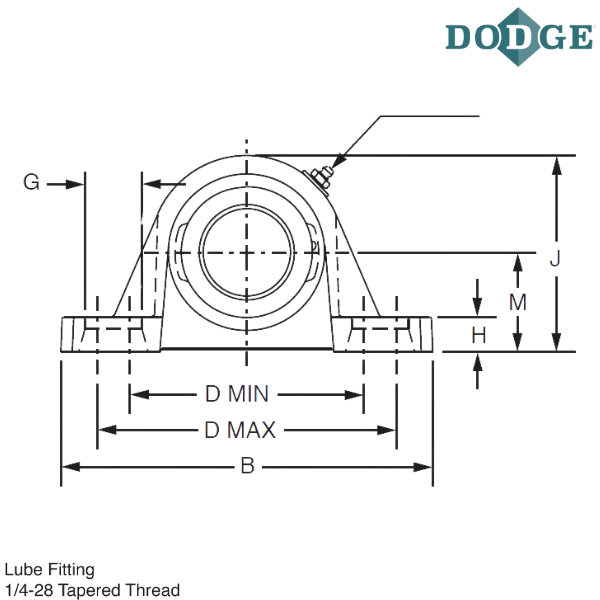

Overall Length (B) mm - 241.3
Width (C) mm - 60.2
Bolt to Bolt Minimum Distance (D min) mm - 174.8
Bolt to Bolt Maximum Distance (D max) mm - 201.7
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) mm - 137.2
L (mm) - 76.2
M (mm) - 69.9
R (mm) - 22.4
S (mm) - 43.4
Total Expansion (T) mm - 5.6

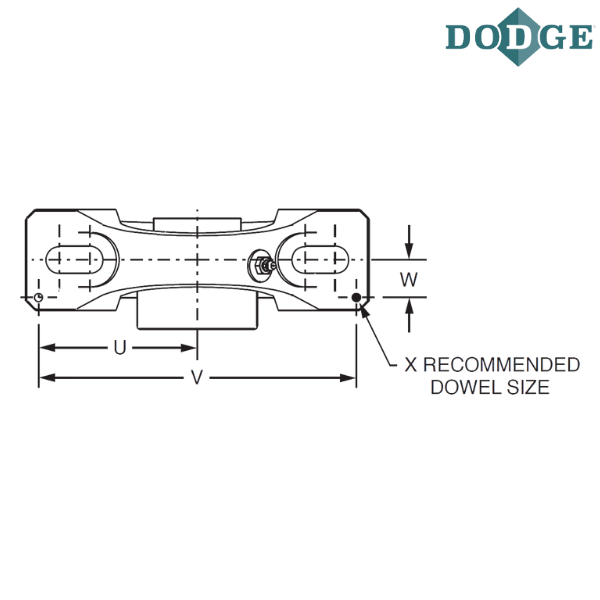

U (mm) - 108
V (mm) - 215.9
W (mm) - 22.4
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
H - High backing height
M - Metric
E - Expansion

** Images are for representation purposes only
