Description
Brand - DODGE
Item Number - DODGE - TB-SXV-101
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Tapped Base Pillow Blocks)
Series - 206
Shaft Size (inch) - 1.0625
Description - TB-SXV-101
Weight (lbs) - 3.2

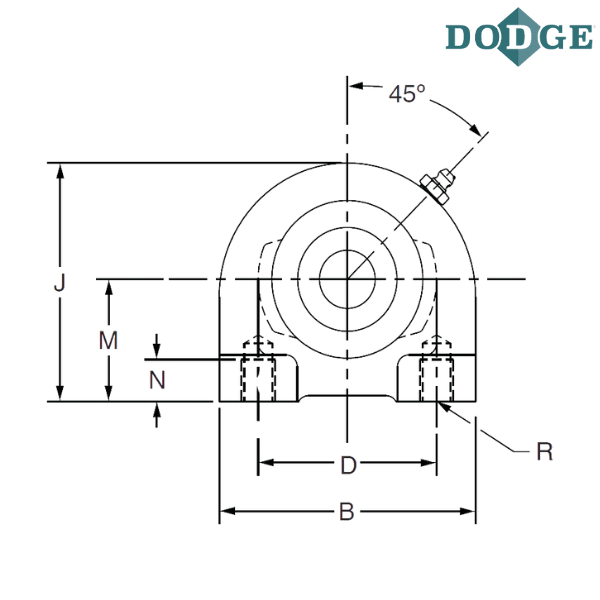

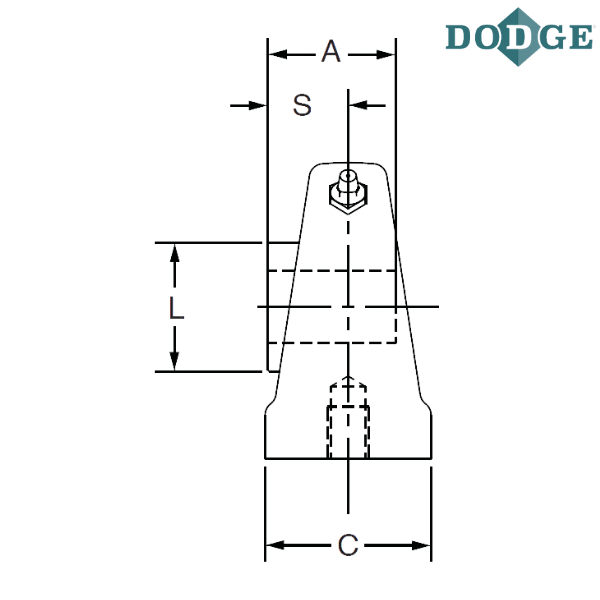

Length Through Bore (A) inch - 1.41
Overall Length (B) inch - 4
Width (C) inch - 1.5
Bolt Center to Center Length (D) inch - 3
Overall Height (J) inch - 3.38
L (inch) - 1.75
Base to Center Height (M) inch - 1.69
Minimum Tap Depth (N) inch - 0.63
Bolt Hole UNC-Thread (R) inch - 7/16-14
S (inch) - 1.05
Notes :
TB - Tapped base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

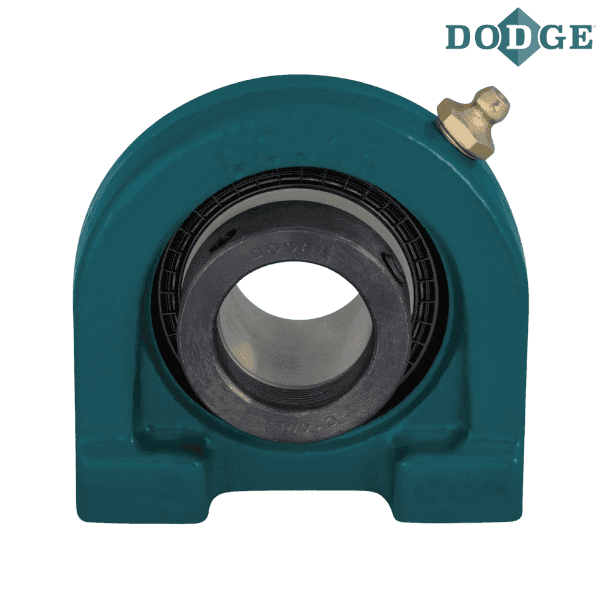

** Images are for representation purposes only
