DODGE - TP-DLM-208


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - TP-DLM-208
Category - D-LOK® Ball Bearings (DL Normal Duty Top Angle Take-Up Bearings)
Series - 214
Shaft Size (inch) - 2.5
Description - TP-DLM-208
Weight (lbs) - 22.5
Take-Up Frame Size - TP40

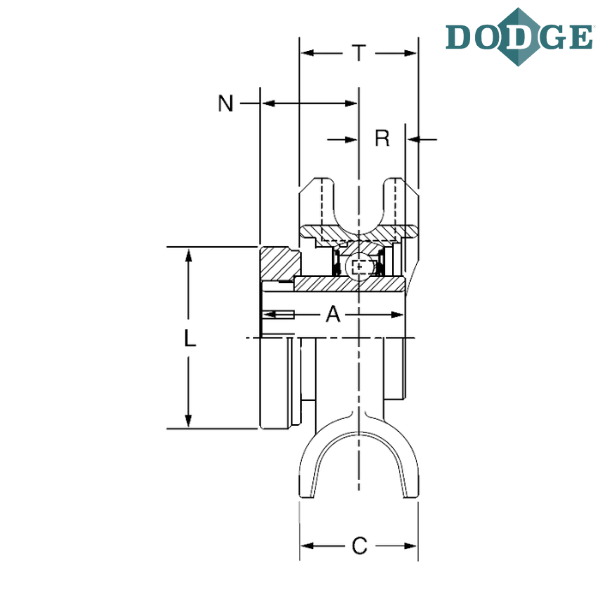

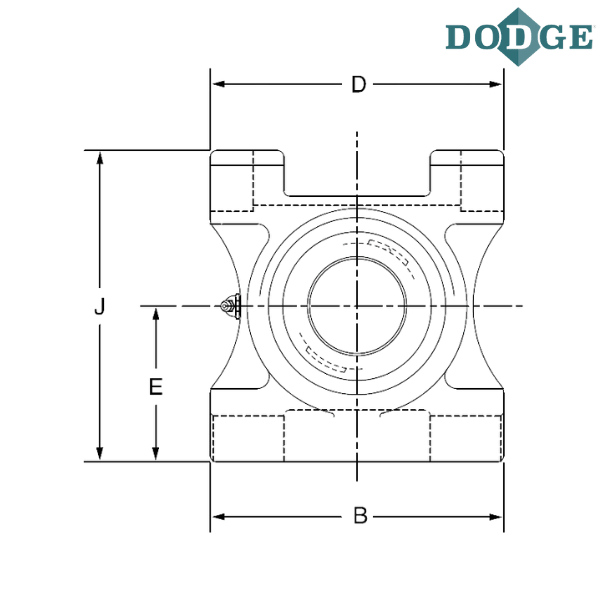

Length Through Bore (A) inch - 2.6
Overall Length (B) inch - 8.5
C (inch) - 2.5
D (inch) - 8
E (inch) - 4
Overall Width (J) inch - 8.31
L (inch) - 4.38
N (inch) - 1.54
R (inch) - 1.06
T (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
