Description
Brand - DODGE
Item Number - DODGE - TP-DLM-211
Category - D-LOK® Ball Bearings (DL Normal Duty Top Angle Take-Up Bearings)
Series - 215
Shaft Size (inch) - 2.6875
Description - TP-DLM-211
Weight (lbs) - 26.2
Take-Up Frame Size - TP40

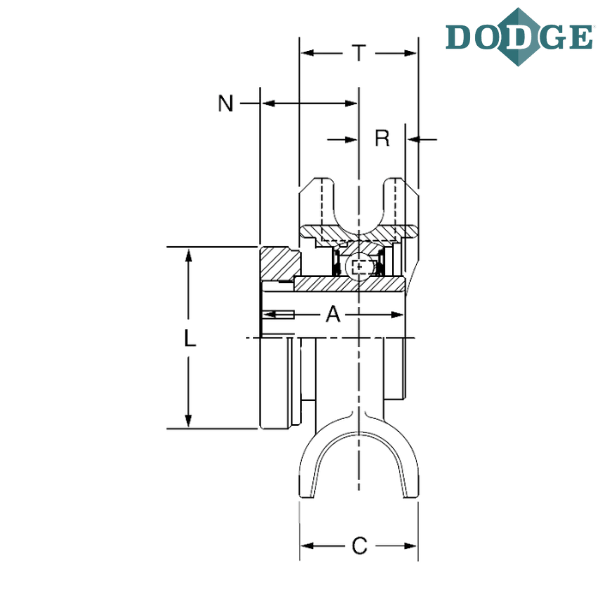

Length Through Bore (A) inch - 2.4
Length Through Bore (A) mm - 61

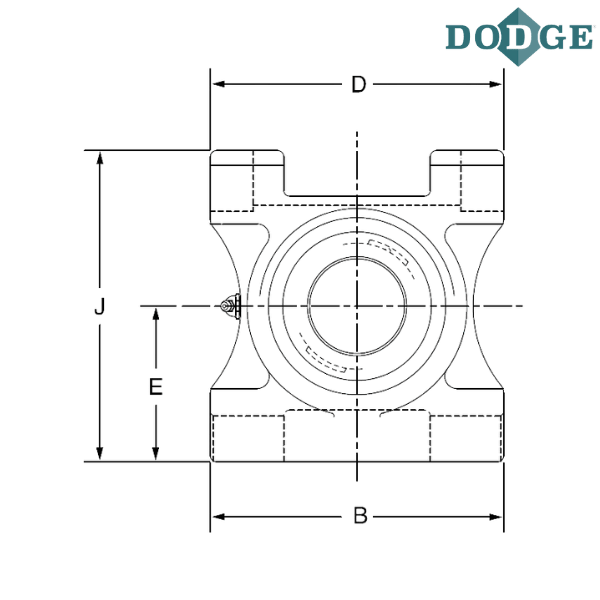

Overall Length (B) inch - 8.5
Overall Length (B) mm - 215.9
C (inch) - 2.5
C (mm) - 63.5
D (inch) - 8
D (mm) - 203.2
E (inch) - 4
E (mm) - 101.6
Overall Width (J) inch - 8.31
Overall Width (J) mm - 211.1
L (inch) - 4.69
L (mm) - 119.1
N (inch) - 1.58
N (mm) - 40.1
R (inch) - 0.82
R (mm) - 20.8
T (inch) - 2.75
T (mm) - 69.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top angle take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

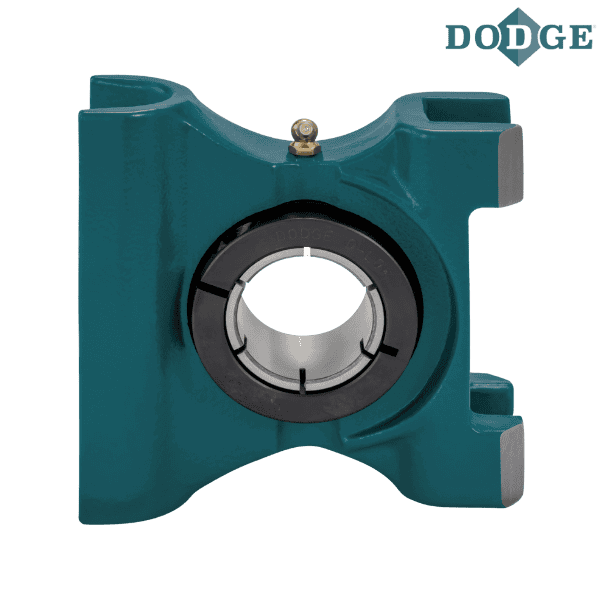

** Images are for representation purposes only
