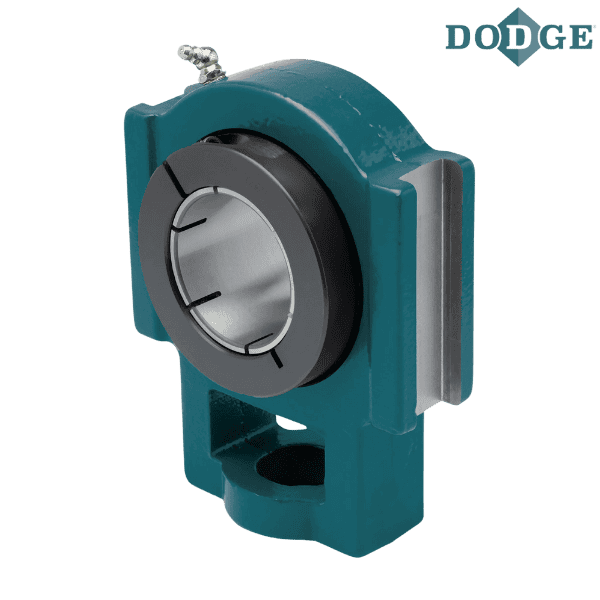

DODGE - WSTU-DL-102


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-DL-102
Category - D-LOK® Ball Bearings (DL Normal Duty Wide Slot Take-Up Bearings)
Series - 206
Shaft Size (inch) - 1.125
Description - WSTU-DL-102
Weight (lbs) - 2.7
Take- Up Frame Size - WS308

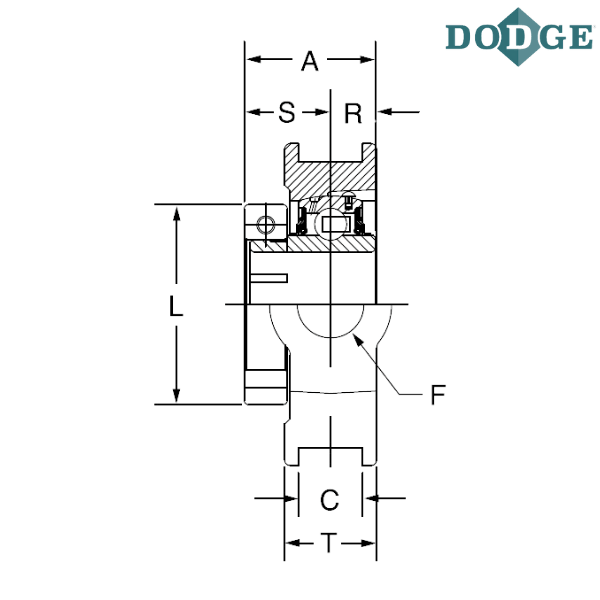

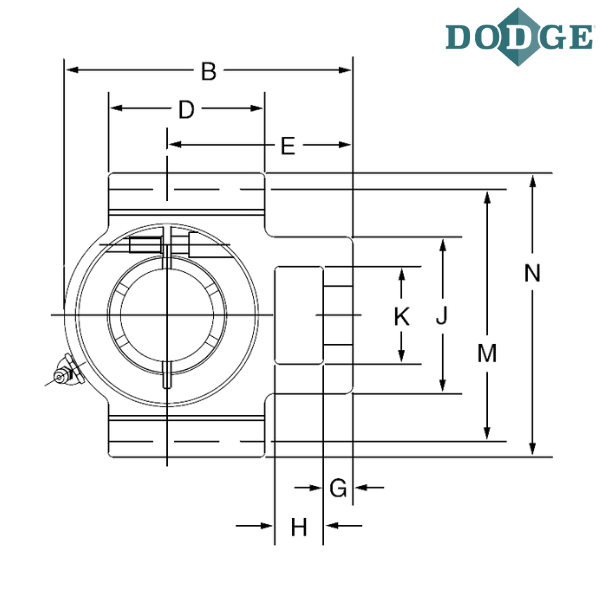

Length Through Bore (A) inch - 1.56
Overall Length (B) inch - 4.38
C (inch) - 0.531
D (inch) - 2.25
E (inch) - 2.75
F (Screw Diameter) inch - 0.75
G (inch) - 0.38
H (inch) - 0.63
J (inch) - 2.19
K (inch) - 1.44
L (inch) - 2.22
M (inch) - 3.480/3.510
Overall Width (N) inch - 4.13
R (inch) - 0.58
S (inch) - 0.98
T (inch) - 1.63
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
DL - Wide inner ring, normal duty, concentric clamp collar

** Images are for representation purposes only
