DODGE - WSTU-DL-45M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-DL-45M
Category - D-LOK® Ball Bearings (DL Normal Duty Wide Slot Take-Up Bearings)
Series - 209
Shaft Size (mm) - 45
Description - WSTU-DL-45M
Weight (kg) - 2.7
Take- Up Frame Size - WS400
Length Through Bore (A) mm - 51.1

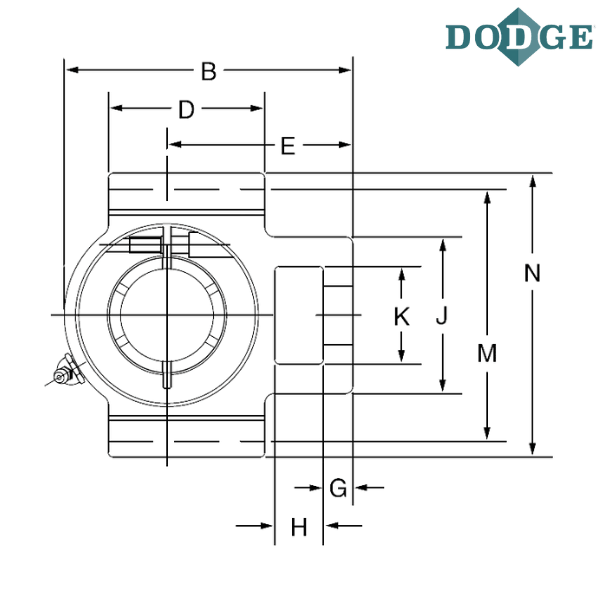

Overall Length (B) mm - 143
C (mm) - 17.48
D (mm) - 82.6
E (mm) - 87.4
F (Screw Diameter) mm - 25.4
G (mm) - 16
H (mm) - 19.1
J (mm) - 82.6
K (mm) - 49.3
L (mm) - 75.9
M (mm) - 101.22/101.98
Overall Width (N) mm - 120.7
R (mm) - 19.1
S (mm) - 32
T (mm) - 49.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

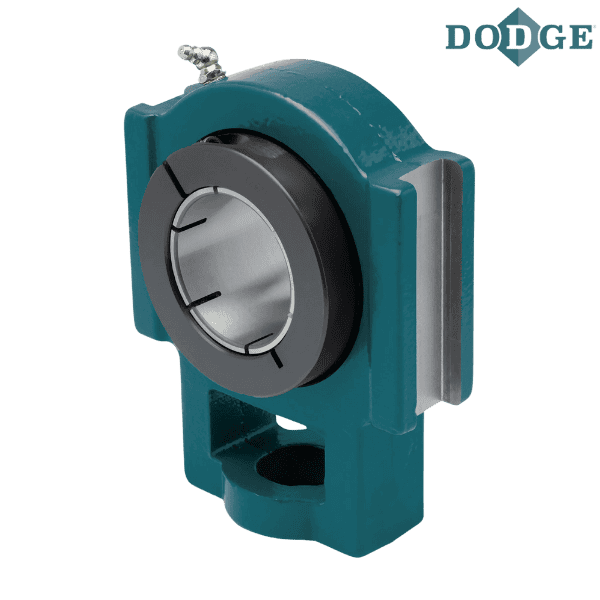

** Images are for representation purposes only
