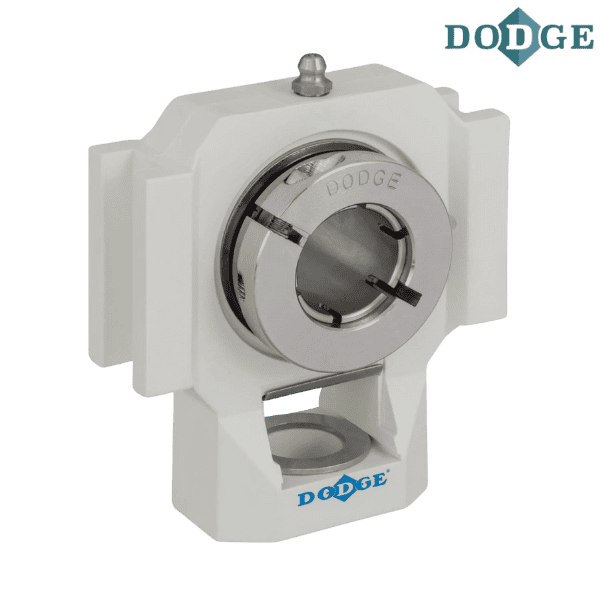

DODGE - WSTU-DLEZ-102-PCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-DLEZ-102-PCR
Category - E-Z KLEEN Mounted Bearings (DLEZ Normal Duty Polymer Housed Wide Slot Take-Up Bearings)
Series - 206
Shaft Size (inch) - 1.125
Description - WSTU-DLEZ-102-PCR
Description (Standard Insert With Flingers) - WSTU-DLEZ-102-P
Weight (lbs) - 1.11
Take-up Frame Number - WS300

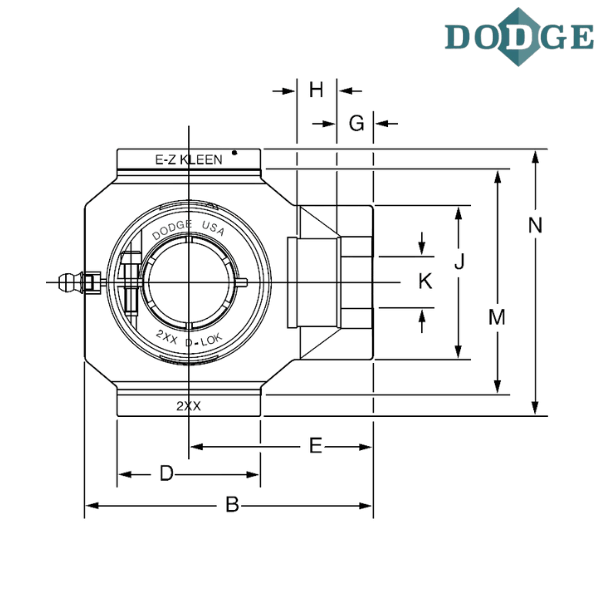

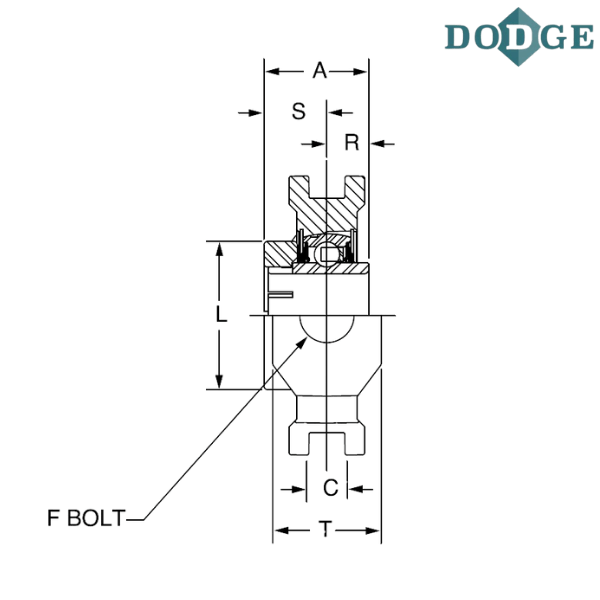

Length Through Bore (A) inch - 1.56
Overall Length (B) inch - 4.49
C (inch) - 0.53
D (inch) - 2.29
E (inch) - 2.86
F (Thread Shaft) inch - 0.75
G (inch) - 0.56
H (inch) - 0.65
J (inch) - 2.41
K (inch) - 0.81
L (inch) - 2.22
M (inch) - 3.525/3.495
Overall Width (N) inch - 4.2
R (inch) - 0.58
S (inch) - 0.98
Thickness (T) inch - 1.62
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
DL - Wide inner ring, normal duty, concentric clamp collar
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
P - Polymer housing
CR - Corrosion resistant insert

** Images are for representation purposes only
