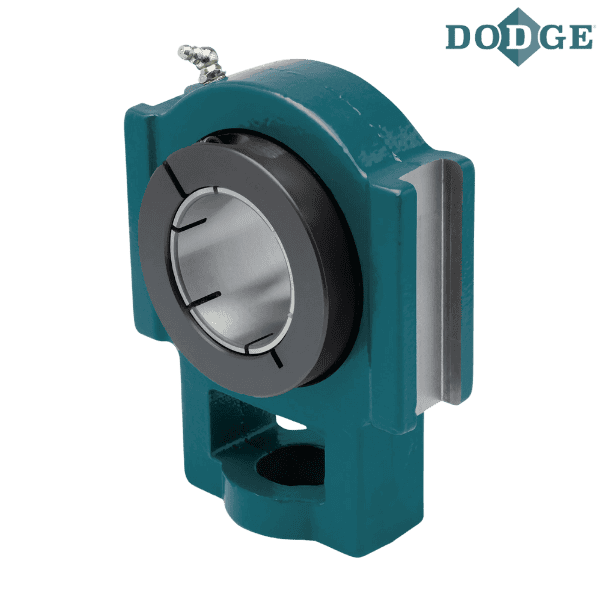

DODGE - WSTU-DLM-108


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-DLM-108
Category - D-LOK® Ball Bearings (DLM Medium Duty Wide Slot Take-Up Bearings)
Series - 209
Shaft Size (inch) - 1.5
Description - WSTU-DLM-108
Weight (lbs) - 7.2
Take- Up Frame Size - WS400

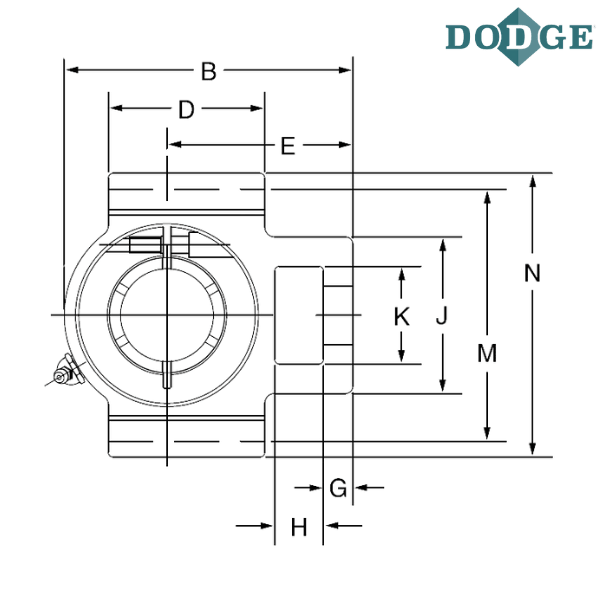

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 5.63
C (inch) - 0.688
D (inch) - 3.25
E (inch) - 3.44
F (Screw Diameter) inch - 1
G (inch) - 0.63
H (inch) - 0.75
J (inch) - 3.25
K (inch) - 1.94
L (inch) - 2.99
M (inch) - 3.985/4.015
Overall Width (N) inch - 4.75
R (inch) - 0.75
S (inch) - 1.26
T (inch) - 1.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
