DODGE - WSTU-DLM-211


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-DLM-211
Category - D-LOK® Ball Bearings (DLM Medium Duty Wide Slot Take-Up Bearings)
Series - 215
Shaft Size (inch) - 2.6875
Description - WSTU-DLM-211
Weight (lbs) - 20.2
Take- Up Frame Size - WS515
Length Through Bore (A) inch - 2.4
Length Through Bore (A) mm - 61
Overall Length (B) inch - 9.13
Overall Length (B) mm - 231.9
C (inch) - 1.063
C (mm) - 27
D (inch) - 4.75
D (mm) - 120.7
E (inch) - 5.5
E (mm) - 139.7
F (Screw Diameter) inch - 1.5
F (Screw Diameter) mm - 38.1
G (inch) - 0.81
G (mm) - 20.6
H (inch) - 1.25
H (mm) - 31.8
J (inch) - 4.38
J (mm) - 111.3
K (inch) - 2.75
K (mm) - 69.9
L (inch) - 4.69
L (mm) - 119.1
M (inch) - 5.923/5.953
M (mm) - 150.44/151.21
Overall Width (N) inch - 6.69
Overall Width (N) mm - 169.9
R (inch) - 0.82
R (mm) - 20.8
S (inch) - 1.58
S (mm) - 40.1
T (inch) - 2.75
T (mm) - 69.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

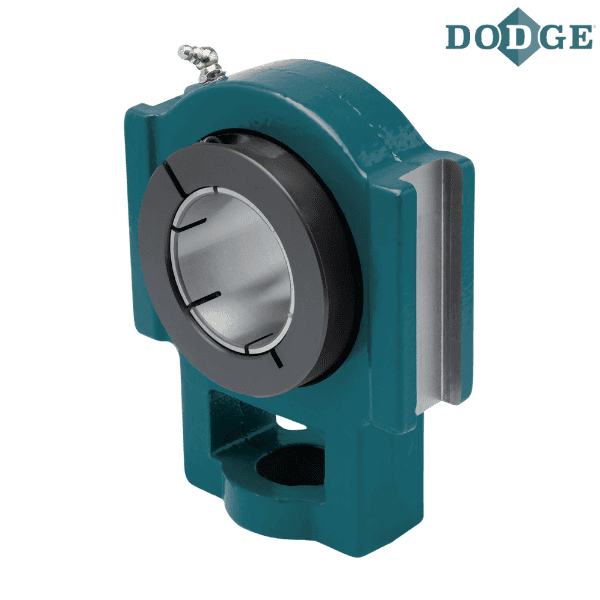

** Images are for representation purposes only
