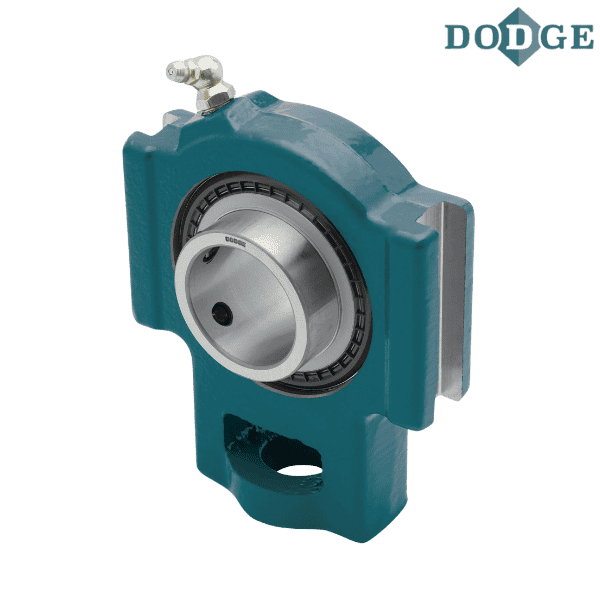

DODGE - WSTU-SCED-014


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-SCED-014
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty Wide Solt Take-Up Bearings)
Series - 205
Shaft Size (inch) - 0.875
Description - WSTU-SCED-014
Weight (lbs) - 2.2
Take-Up Frame Size - WS300

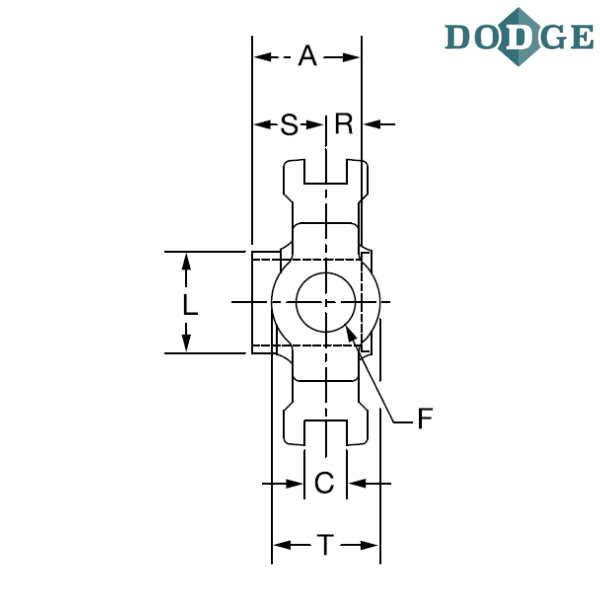

Length Through Bore (A) inch - 1.34

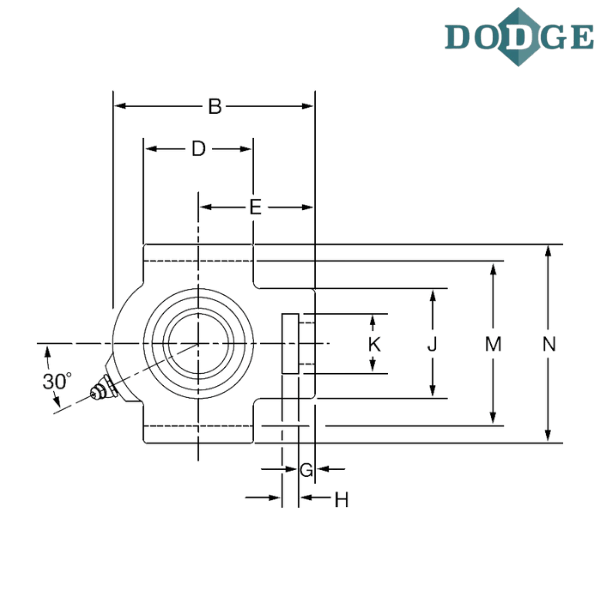

Overall Length (B) inch - 3.81
Thickness (C) inch - 0.531
D (inch) - 2
E (inch) - 2.44
F (Screw Diameter) inch - 0.625
G (inch) - 0.38
H (inch) - 0.63
J (inch) - 2
K (inch) - 1.31
L (inch) - 1.32
M (inch) - 2.985/3.015
Overall Width (N) inch - 3.63
R (inch) - 0.56
S (inch) - 0.78
T (inch) - 1.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
SCED - Extreme duty

** Images are for representation purposes only
