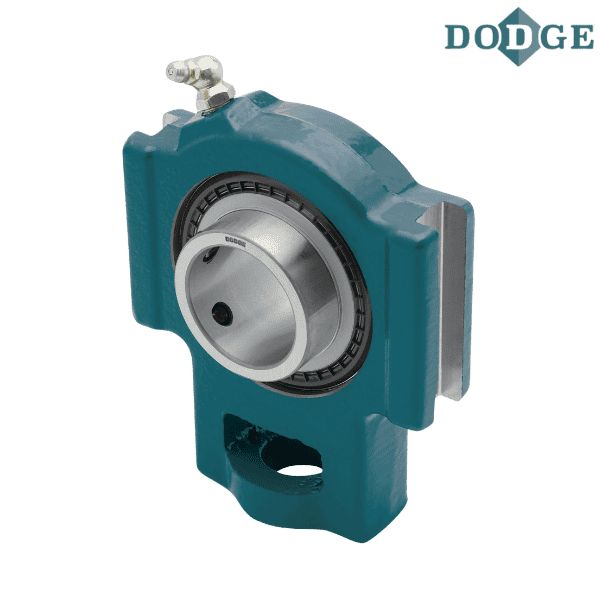

DODGE - WSTU-SCED-204


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-SCED-204
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty Wide Solt Take-Up Bearings)
Series - 211
Shaft Size (inch) - 2.25
Description - WSTU-SCED-204
Weight (lbs) - 9.8
Take-Up Frame Size - WS502

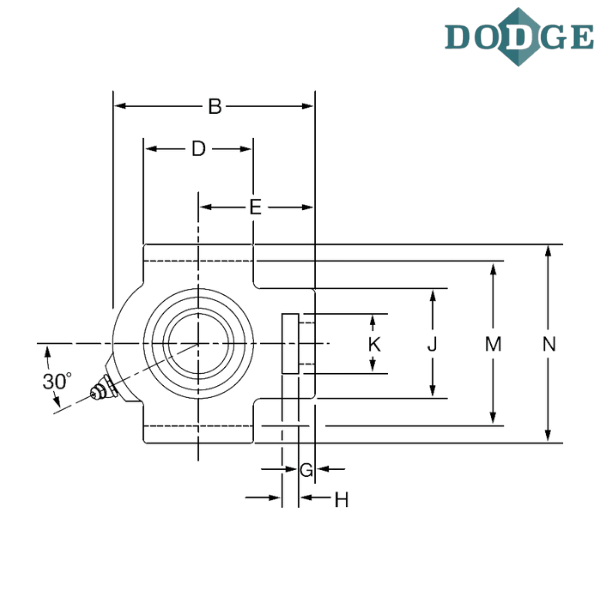

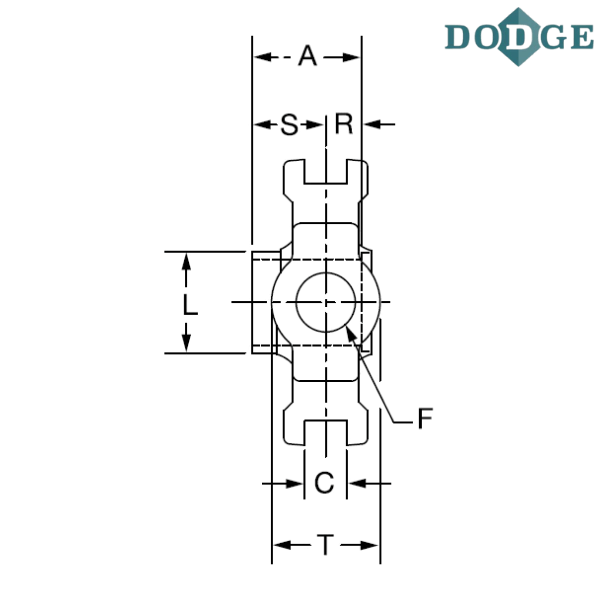

Length Through Bore (A) inch - 2.22
Overall Length (B) inch - 6.69
Thickness (C) inch - 1.063
D (inch) - 3.75
E (inch) - 4.19
F (Screw Diameter) inch - 1.25
G (inch) - 0.75
H (inch) - 1
J (inch) - 4
K (inch) - 2.5
L (inch) - 2.71
M (inch) - 5.110/5.140
Overall Width (N) inch - 5.88
R (inch) - 0.87
S (inch) - 1.35
T (inch) - 2.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
SCED - Extreme duty

** Images are for representation purposes only
