DODGE - WSTU-VSC-30M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-VSC-30M
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty Wide Slot Take-Up Bearings)
Series - 206
Shaft Size (mm) - 30
Description - WSTU-VSC-30M
Weight (kg) - 1.33
Take-Up Frame Number Reference - WS308

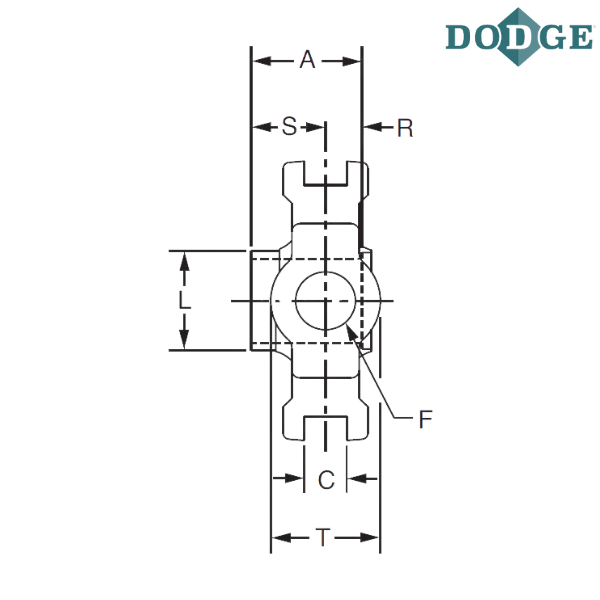

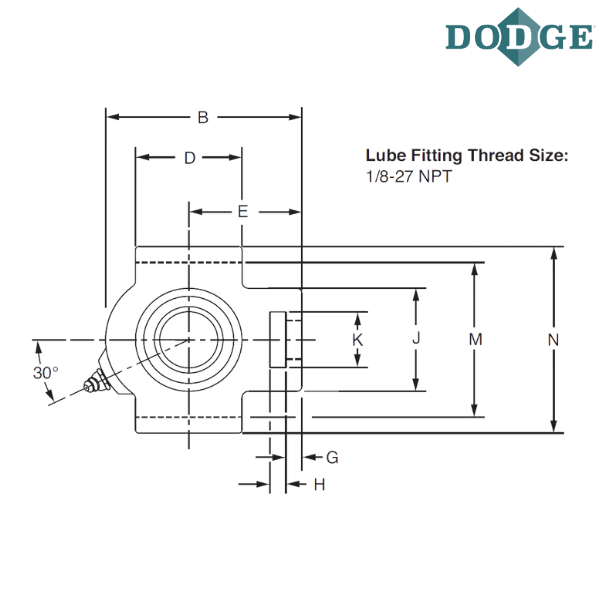

Length Through Bore (A) mm - 38.6
Overall Length (B) mm - 111.3
C (mm) - 13.49
D (mm) - 57.2
E (mm) - 69.9
F (Screw Diameter) mm - 19.1
G (mm) - 9.7
H (mm) - 16
J (mm) - 55.6
K (mm) - 36.6
L (mm) - 39.9
M (mm) - 88.39/89.15
Overall Width (N) mm - 104.9
R (mm) - 14.7
S (mm) - 23.9
T (mm) - 41.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
M - Metric

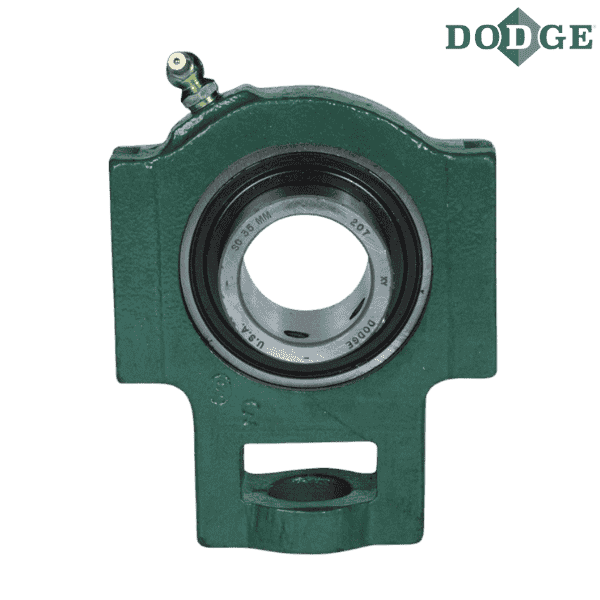

** Images are for representation purposes only
