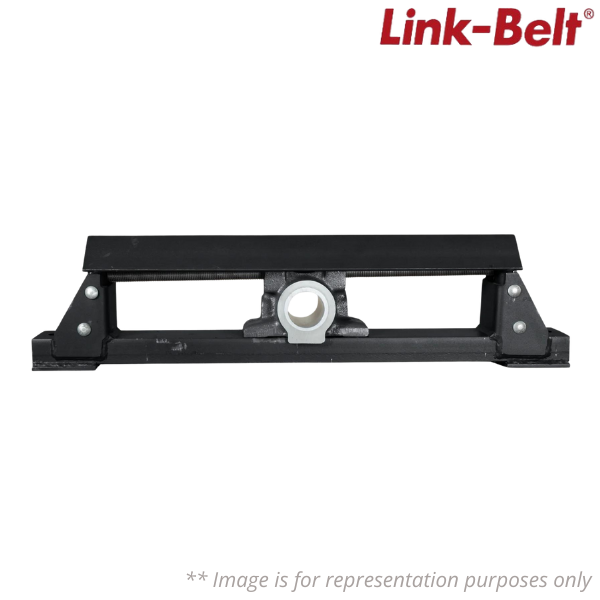

DSB283112 Link-Belt

Brand - Link-Belt
Item Number - DSB283112 Link-Belt
Category - Take-up Assemblies Sleeve Bearing
UPC - 662327022181
Material - 10414967
Model - DSB2800X
Bore Size (in) - 1.9375 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Take-Up Assembly
Housing Type - Take-Up Assembly
Base to Centerline Height (in) - 3 1/4 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BABBITT SLEEVE BRG
Bore Length (in) - 4 in
Frame Bolt Hole Spacing (in) - 26 1/2 in
Frame Height (in) - 7 1/4 in
Frame Length (in) - 29 1/2 in
Frame Material - Welded Steel
Frame Width (in) - 3 in
Grease Fitting Size - 1/4 NPT
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 54 C
Maximum Temperature (F) - 130 F
Mounting Bolt Size (in) - 5/8 in
Mounting Pad Height (in) - 1 3/4 in
Weight (kg) - 17.31360664
Pipe Tap Size (in) - 1/4 in
Radial Factor - 1
Take-up Block - DSB2831
Take-up Frame Assembly Type - Conveyor Take-Up Heavy Hinged Top
Travel Length (in) - 12 in
