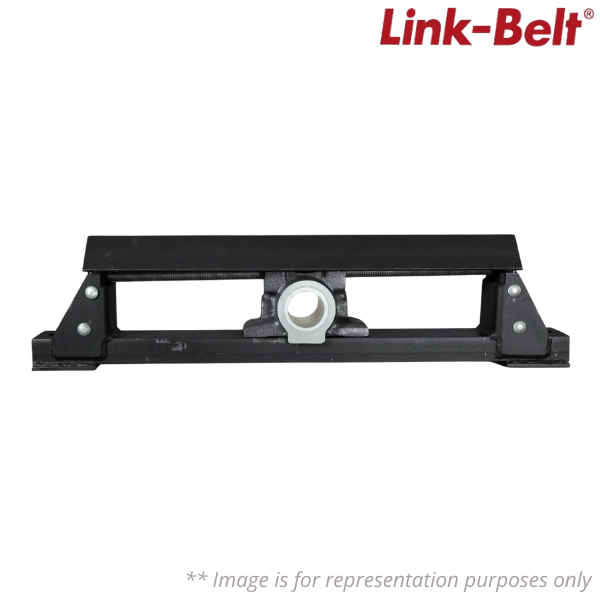

DSB283524 Link-Belt

Brand - Link-Belt
Item Number - DSB283524 Link-Belt
Category - Take-up Assemblies Sleeve Bearing
UPC - 662327022242
Material - 10423928
Model - DSB2800X
Bore Size (in) - 2.1875 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Take-Up Assembly
Housing Type - Take-Up Assembly
Base to Centerline Height (in) - 3 3/8 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BABBITT SLEEVE BRG
Bore Length (in) - 4 in
Frame Bolt Hole Spacing (in) - 38 1/2 in
Frame Height (in) - 7 1/4 in
Frame Length (in) - 41 1/2 in
Frame Material - Welded Steel
Frame Width (in) - 3 in
Grease Fitting Size - 3/8 NPT
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 54 C
Maximum Temperature (F) - 130 F
Mounting Bolt Size (in) - 5/8 in
Mounting Pad Height (in) - 1 3/4 in
Weight (kg) - 22.62063304
Pipe Tap Size (in) - 3/8 in
Radial Factor - 1
Take-up Block - DSB2835
Take-up Frame Assembly Type - Conveyor Take-Up Heavy Hinged Top
Travel Length (in) - 24 in
