DTJ 75168 RBC

Brand - RBC
Item Number - DTJ 75168 RBC *
Category - Heavy Duty Tandem Roller Bearing Double Row

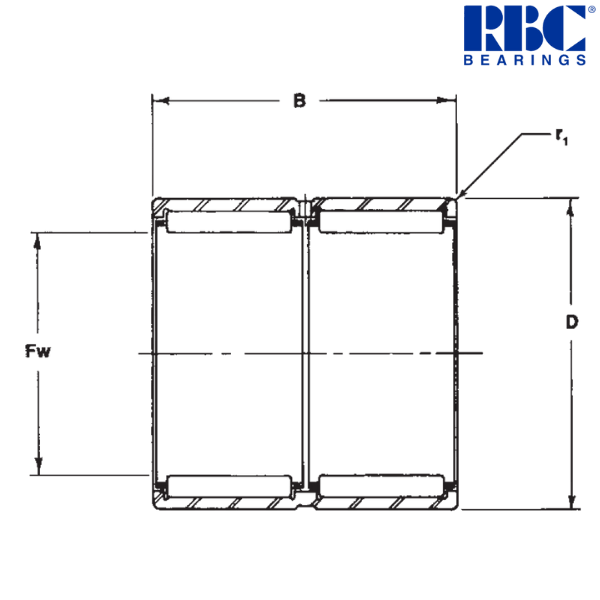

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (Fw) - 3.25 inch
Minimum Inside Diameter (Fw) - 3.2512 inch
Maximum Inside Diameter (Fw) - 3.2524 inch
Maximum Outside Diameter (D) - 4.25 inch
Minimum Outside Diameter (D) - 4.2492 inch
Width (B) - 4 (+0.000 to -0.005) inch
Maximum Housing Fillet (r1) - 0.06 inch
Housing Shoulder Diameter - 3.75 (+/- 0.015625)
Dynamic Capacity (C) - 54500 lbf
Static Capacity (Co) - 164500 lbf
Limiting Speed - 3300 rpm
Maximum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 3.25 inch
Minimum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 3.2491 inch
Maximum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 3.2486 inch
Minimum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 3.2477 inch
Minimum Recommended Housing Bore (Slip Fit ISO H7) - 4.25 inch
Maxmum Recommended Housing Bore (Slip Fit ISO H7) - 4.2514 inch
Mean Fit for Recommended Housing Bore (Slip Fit ISO H7) - .0011L inch
Minimum Recommended Housing Bore (Press Fit ISO N7) - 4.2482 inch
Maximum Recommended Housing Bore (Press Fit ISO N7) - 4.2496 inch
Mean Fit for Recommended Housing Bore (Press Fit ISO N7) - .0007T inch

Description of Prefix :
DTJ - Double Row Bearing

Other salient points to be noted :
* Location and number of lubricating holes may differ

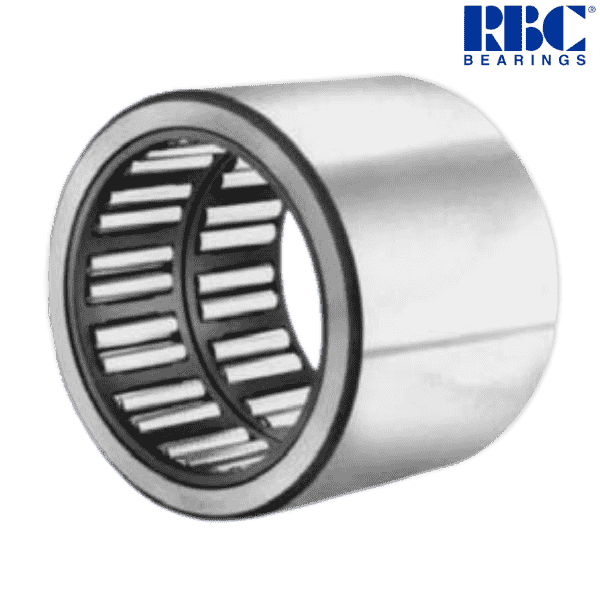

♦ ♦ Images are for representation purposes only
