DX135509/DX371163 TIMKEN

Brand - TIMKEN
Item Number - DX135509/DX371163 TIMKEN
Also Known As - DX135509 - DX371163
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 333.375
Bore Diameter (d) inch - 13.125
Outer Diameter (D) mm - 469.9
Outer Diameter (D) inch - 18.5
Bearing Width across Cones (T) mm - 190.5
Bearing Width across Cones (T) inch - 7.5
Double Outer Ring Width (C) mm - 152.4
Double Outer Ring Width (C) inch - 6
Dynamic Load Rating (C1) N - 3930000
Dynamic Load Rating (C1) lbf - 884000
Factor (e) - 0.33
Factor (Y1) - 2.02
Factor (Y2) - 3
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 586000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 132000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 336000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 75500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 1020000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 229000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.74

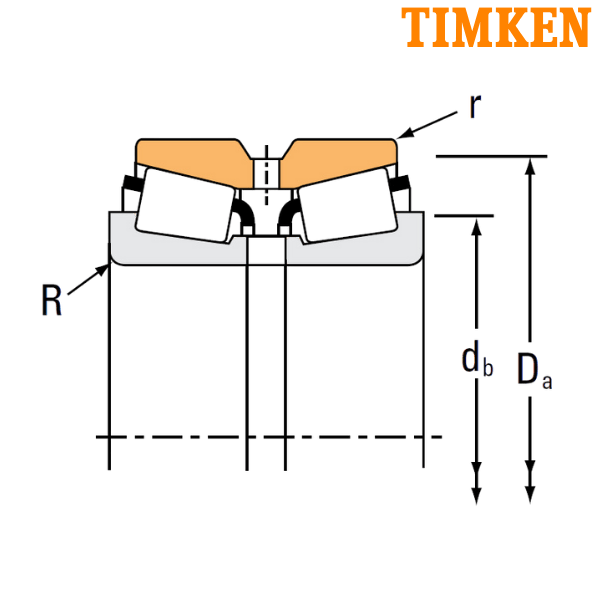

Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Cone Backface Backing Diameter (db) mm - 363
Cone Backface Backing Diameter (db) inch - 14.29
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 449
Cup Frontface Backing Diameter (Da) inch - 17.69

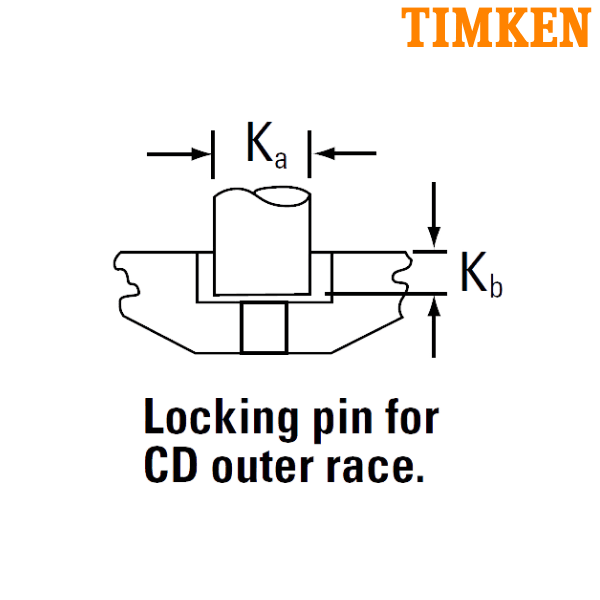

PIn (Ka) mm - 28.58
PIn (Ka) inch - 1.13
PIn (Kb) mm - 11.91
PIn (Kb) inch - 0.47
Geometry Factor (G1) - 3306.8
Geometry Factor (G2) - 324.3
Geometry Factor (Cg) - 0.1935
Bearing Weight (kg) - 95.33
Bearing Weight (lbs) - 210.17
Inner Part Number - DX135509
Outer Part Number - DX371163

** Images are for representation purposes only
