EE221039TD/221575 TIMKEN

Brand - TIMKEN
Item Number - EE221039TD/221575 TIMKEN
Also KNown As - EE221039TD - 221575
Category - Double Row Tapered Roller Bearing (TDIT Type)

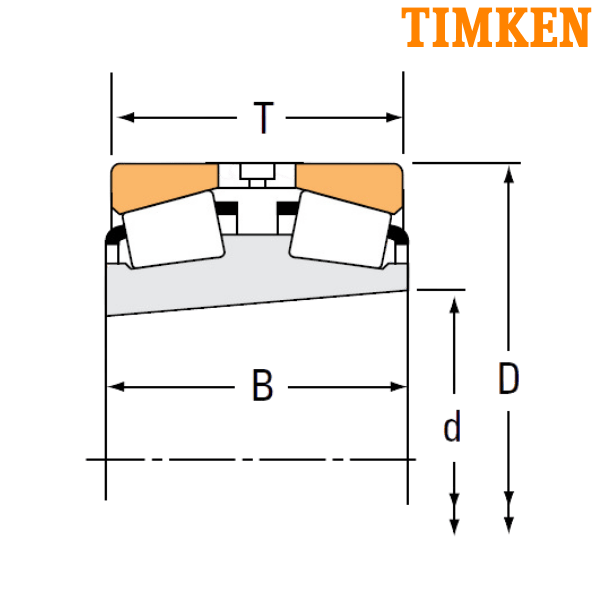

Bore Diameter (d) mm - 263.525
Bore Diameter (d) inch - 10.375
Taper - 0.05
Outer Diameter (D) mm - 400.05
Outer Diameter (D) inch - 15.75
Width (T) mm - 196.847
Width (T) inch - 7.7499
Double Inner Ring Width (B) mm - 192.088
Double Inner Ring Width (B) inch - 7.5625
Dynamic Load Rating (C1) N - 1440000
Dynamic Load Rating (C1) lbf - 324000
Factor (e) - 0.39
Factor (Y1) - 1.71
Factor (Y2) - 2.55
Dynamic Radial Rating (90 million revolutions) (C90) N - 215000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 48200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 145000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 32600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 374000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 84000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.48

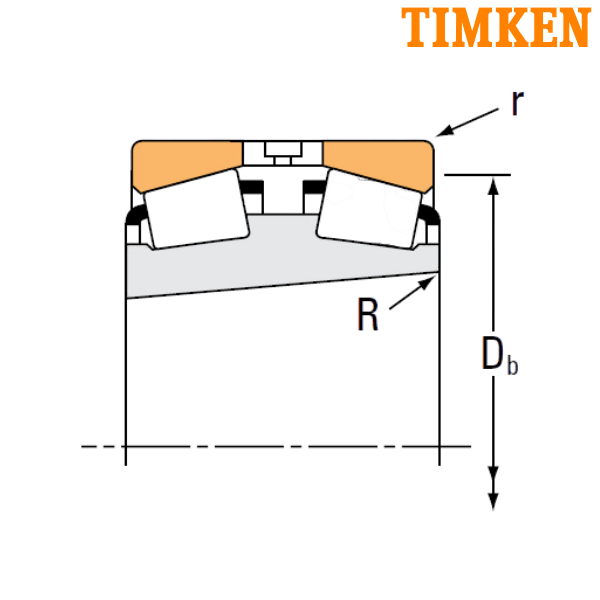

Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Maximum Housing Fillet Radius (r) mm - 6.4
Maximum Housing Fillet Radius (r) inch - 0.25
Cup Backface Backing Diameter (Db) mm - 366
Cup Backface Backing Diameter (Db) inch - 14.41
Geometry Factor (G1) - 1320.8
Geometry Factor (G2) - 207.5
Geometry Factor (Cg) - 0.1497
Weight (kg) - 70.69
Weight (lbs) - 155.85
Inner Part Number - EE221039TD
Outer Part Number - 221575
TDIT - Double Inner-Ring Bearing with a Tapered Bore

** Images are for representation purposes only
