EE234156/234221D TIMKEN

Brand - TIMKEN
Item Number - EE234156/234221D TIMKEN
Also Known As - EE234156 - 234221D
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 396.875
Bore Diameter (d) inch - 15.625
Outer Diameter (D) mm - 558.8
Outer Diameter (D) inch - 22
Bearing Width across Cones (T) mm - 146.05
Bearing Width across Cones (T) inch - 5.75
Double Outer Ring Width (C) mm - 104.775
Double Outer Ring Width (C) inch - 4.125
Dynamic Load Rating (C1) N - 1890000
Dynamic Load Rating (C1) lbf - 425000
Factor (e) - 0.48
Factor (Y1) - 1.42
Factor (Y2) - 2.11
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 282000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 63300
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 230000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 51600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 490000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 110000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.23

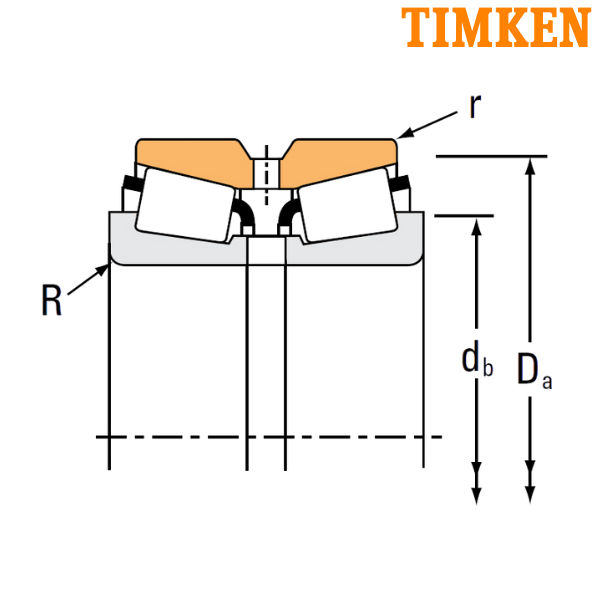

Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Cone Backface Backing Diameter (db) mm - 428
Cone Backface Backing Diameter (db) inch - 16.85
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 515.6
Cup Frontface Backing Diameter (Da) inch - 20.3
Geometry Factor (G1) - 2782.9
Geometry Factor (G2) - 448.6
Geometry Factor (Cg) - 0.2018
Bearing Weight (kg) - 93.63
Bearing Weight (lbs) - 206.41
Inner Part Number - EE234156
Outer Part Number - 234221D
TDO - Single Piece (Double) Outer Ring and Two Single Inner Rings

** Images are for representation purposes only
