EE522102/523088D TIMKEN

Brand - TIMKEN
Item Number - EE522102/523088D TIMKEN
Also Known As - EE522102 - 523088D
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 533.4
Bore Diameter (d) inch - 21
Outer Diameter (D) mm - 784.225
Outer Diameter (D) inch - 30.875
Bearing Width across Cones (T) mm - 190.5
Bearing Width across Cones (T) inch - 7.5
Double Outer Ring Width (C) mm - 120.65
Double Outer Ring Width (C) inch - 4.75
Dynamic Load Rating (C1) N - 3770000
Dynamic Load Rating (C1) lbf - 848000
Factor (e) - 0.48
Factor (Y1) - 1.42
Factor (Y2) - 2.11
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 561000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 126000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 457000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 103000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 977000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 220000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.23

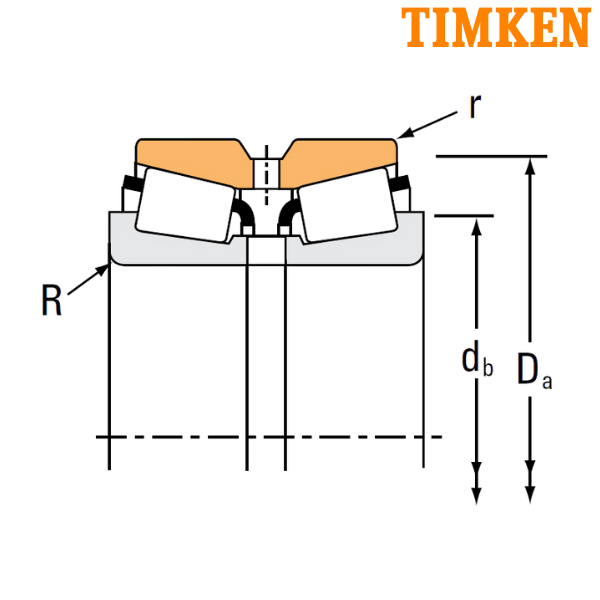

Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Cone Backface Backing Diameter (db) mm - 576
Cone Backface Backing Diameter (db) inch - 22.68
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 733.8
Cup Frontface Backing Diameter (Da) inch - 28.89
Geometry Factor (G1) - 5013.3
Geometry Factor (G2) - 457.2
Geometry Factor (Cg) - 0.2452
Bearing Weight (kg) - 263.14
Bearing Weight (lbs) - 580.1
Inner Part Number - EE522102
Outer Part Number - 523088D
TDO - Single Piece (Double) Outer Ring and Two Single Inner Rings

** Images are for representation purposes only
